| Part Number | JAN2N3439L | JAN2N3439 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active |
| Transistor Type | NPN | NPN |
| Current - Collector (Ic) (Max) | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 350 V | 350 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 4mA, 50mA | 500mV @ 4mA, 50mA |
| Current - Collector Cutoff (Max) | 2µA | 2µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 20mA, 10V | 40 @ 20mA, 10V |
| Power - Max | 800 mW | 800 mW |
| Frequency - Transition | - | - |
| Operating Temperature | -65°C ~ 200°C (TJ) | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole | Through Hole |

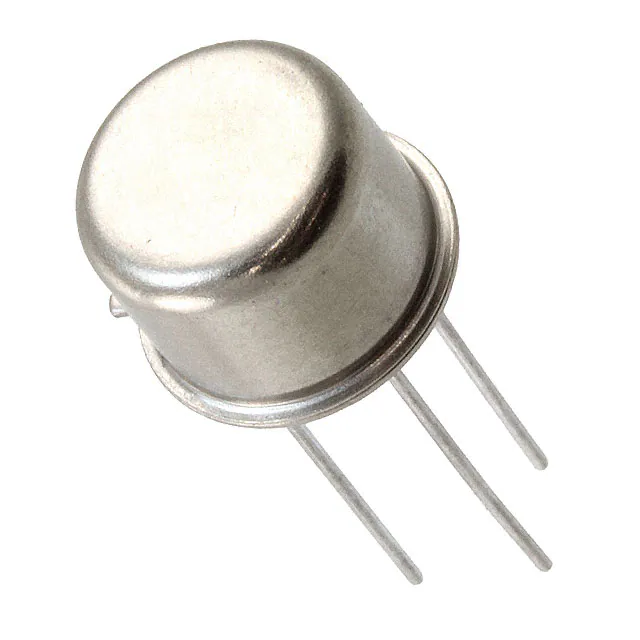

| Package / Case | TO-205AA, TO-5-3 Metal Can | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-5 | TO-39 (TO-205AD) |
