Please send RFQ , we will respond immediately.

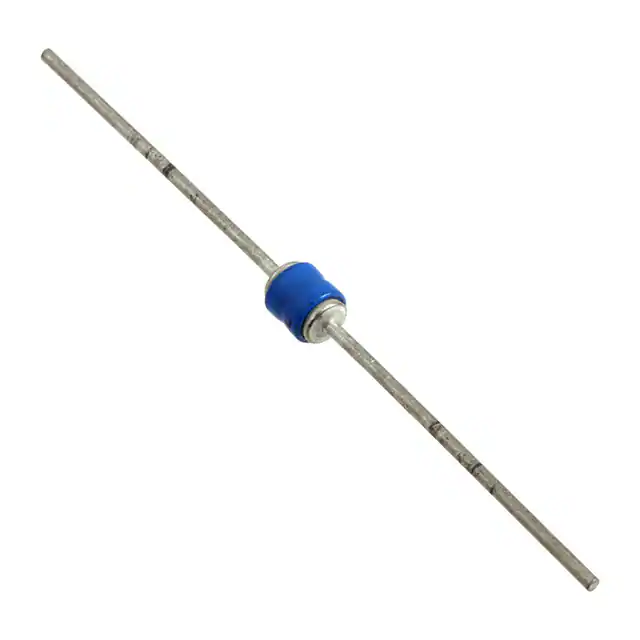

| Part Number | JAN1N6152A | JAN1N6153A | JAN1N6154A | JAN1N6155A | JAN1N6156A | JAN1N6157A | JAN1N6159A | JAN1N6162A | JAN1N6158A | JAN1N6150A | JAN1N6151A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 20.6V | 22.8V | 25.1V | 27.4V | 29.7V | 32.7V | 38.8V | 51.7V | 35.8V | 16.7V | 18.2V |
| Voltage - Breakdown (Min) | 25.7V | 28.5V | 31.4V | 34.2V | 37.1V | 40.9V | 48.5V | 64.6V | 44.7V | 20.9V | 22.8V |
| Voltage - Clamping (Max) @ Ipp | 37.4V | 41.6V | 45.7V | 49.9V | 53.6V | 59.1V | 70.1V | 97.1V | 64.6V | 30.5V | 33.3V |
| Current - Peak Pulse (10/1000µs) | 40.1A | 36A | 32.8A | 30.1A | 28A | 25.4A | 21.4A | 15.4A | 23.2A | 49.2A | 45A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial | G, Axial |
| Supplier Device Package | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial | C, Axial |
