Microchip Technology-JAN1N5819UR-1 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	45 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	490 mV @ 1 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	50 µA @ 45 V
Capacitance @ Vr, F:	70pF @ 5V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AB, MELF (Glass)
Supplier Device Package:	DO-213AB (MELF, LL41)
Operating Temperature - Junction:	-65°C ~ 125°C

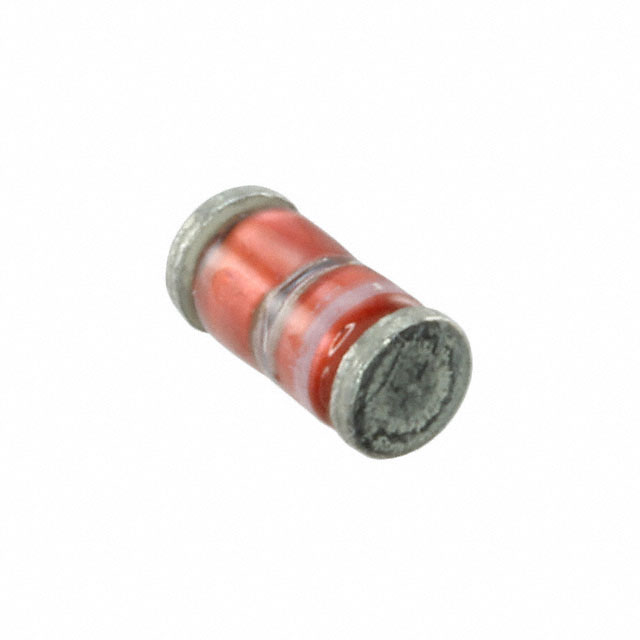

Microchip Technology JAN1N5819UR-1
