Please send RFQ , we will respond immediately.

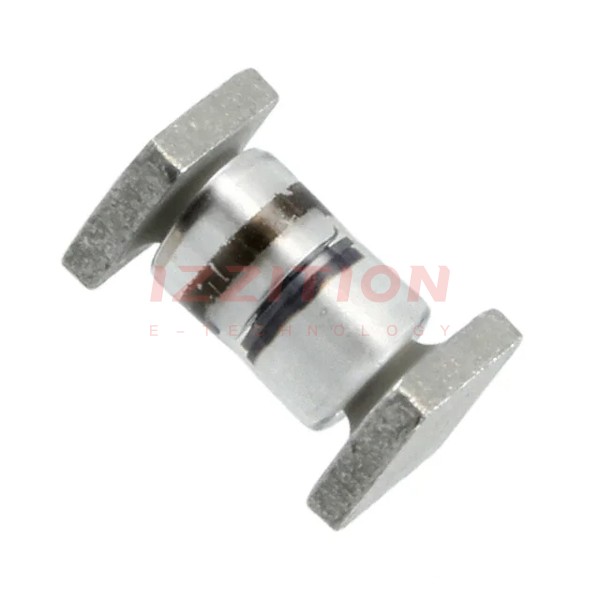

| Part Number | JAN1N5620US/TR | JAN1N5621US/TR | JAN1N5623US/TR | JAN1N5622US/TR | JAN1N6620US/TR | JAN1N5420US/TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V | 800 V | 1000 V | 1000 V | 220 V | 600 V |
| Current - Average Rectified (Io) | 1A | 1A | 1A | 1A | 2A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A | 1.6 V @ 3 A | 1.6 V @ 3 A | 1.3 V @ 3 A | 1.6 V @ 2 A | 1.5 V @ 9 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 300 ns | 500 ns | 2 µs | 30 ns | 400 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 800 V | 500 nA @ 800 V | 500 nA @ 1 V | 500 nA @ 1 V | 500 nA @ 220 V | 1 µA @ 600 V |
| Capacitance @ Vr, F | - | - | 15pF @ 12V, 1MHz | - | 10pF @ 10V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, A | SQ-MELF, B |
| Supplier Device Package | D-5A | D-5A | D-5A | D-5A | D-5A | D-5B |
| Operating Temperature - Junction | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 150°C | -65°C ~ 175°C |
