Microchip Technology-JAN1N5616 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Part Number	JAN1N5616	JAN1N5617	JAN1N5619	JAN1N5416	JAN1N5614
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active
Diode Type	Standard	Standard	Standard	Standard	Standard
Voltage - DC Reverse (Vr) (Max)	400 V	400 V	600 V	100 V	200 V
Current - Average Rectified (Io)	1A	1A	1A	3A	1A
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 3 A	1.6 V @ 3 A	1.6 V @ 3 A	1.5 V @ 9 A	1.3 V @ 3 A
Speed	Standard Recovery >500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Fast Recovery =< 500ns, > 200mA (Io)	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2 µs	150 ns	250 ns	150 ns	2 µs
Current - Reverse Leakage @ Vr	500 nA @ 400 V	500 nA @ 400 V	500 nA @ 800 V	1 µA @ 100 V	500 nA @ 200 V
Capacitance @ Vr, F	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	A, Axial	A, Axial	A, Axial	B, Axial	A, Axial
Supplier Device Package	-	-	-	-	-
Operating Temperature - Junction	-65°C ~ 200°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 200°C

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	400 V
Current - Average Rectified (Io):	1A
Voltage - Forward (Vf) (Max) @ If:	1.3 V @ 3 A
Speed:	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):	2 µs
Current - Reverse Leakage @ Vr:	500 nA @ 400 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	A, Axial
Supplier Device Package:	-
Operating Temperature - Junction:	-65°C ~ 200°C

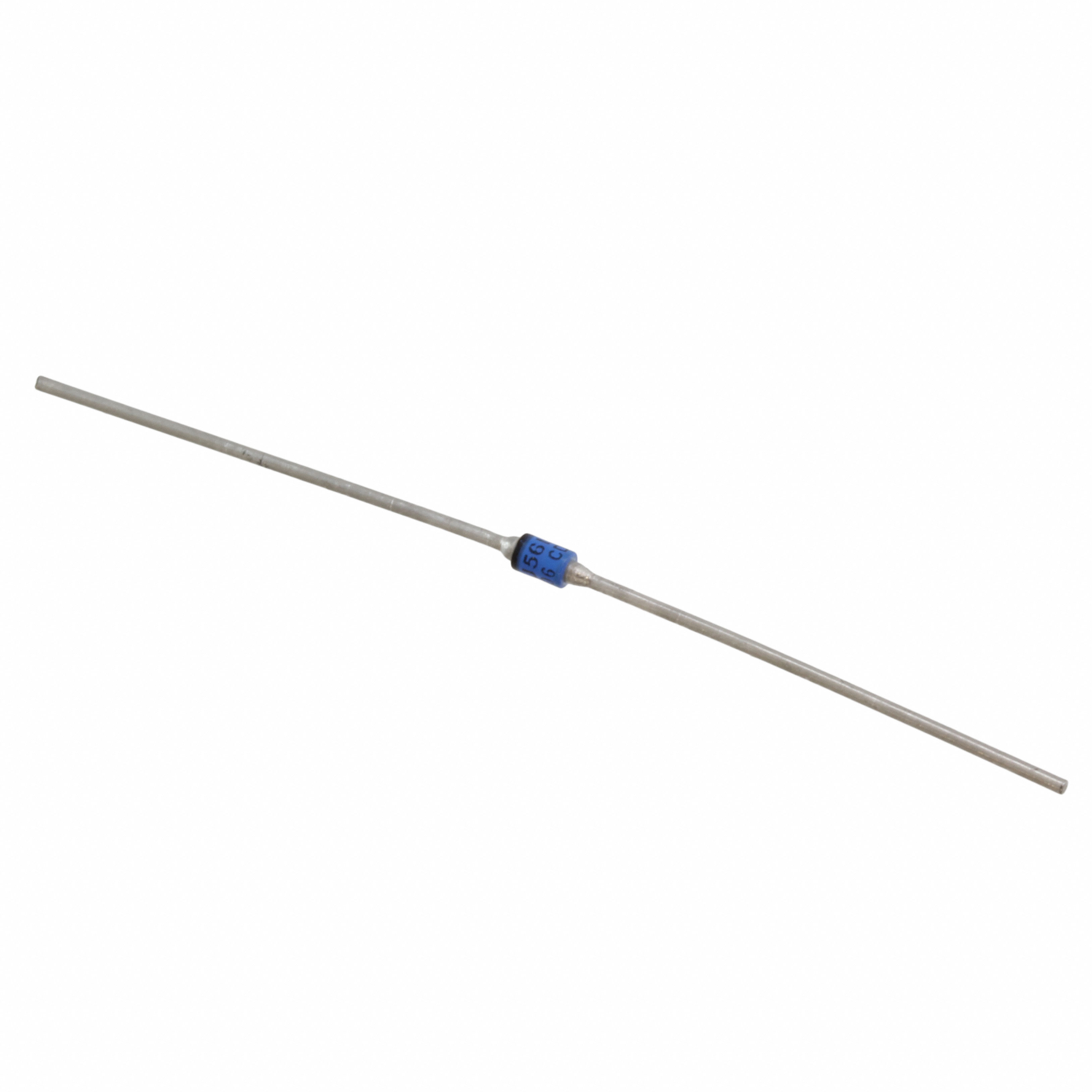

Microchip Technology JAN1N5616
