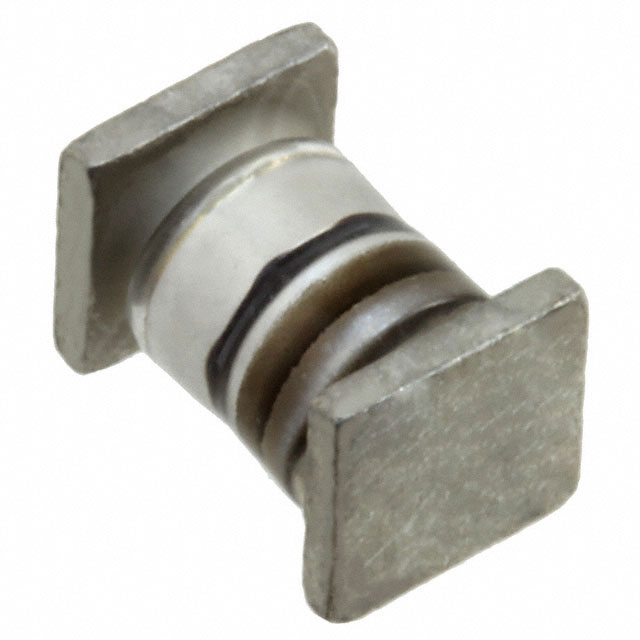

| Part Number | JAN1N5554US | JAN1N5552US |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Discontinued at Digi-Key |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V | 600 V |
| Current - Average Rectified (Io) | 5A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 9 A | 1.2 V @ 9 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs | 2 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 1000 V | 1 µA @ 600 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SQ-MELF, B | SQ-MELF, B |
| Supplier Device Package | D-5B | D-5B |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C |
