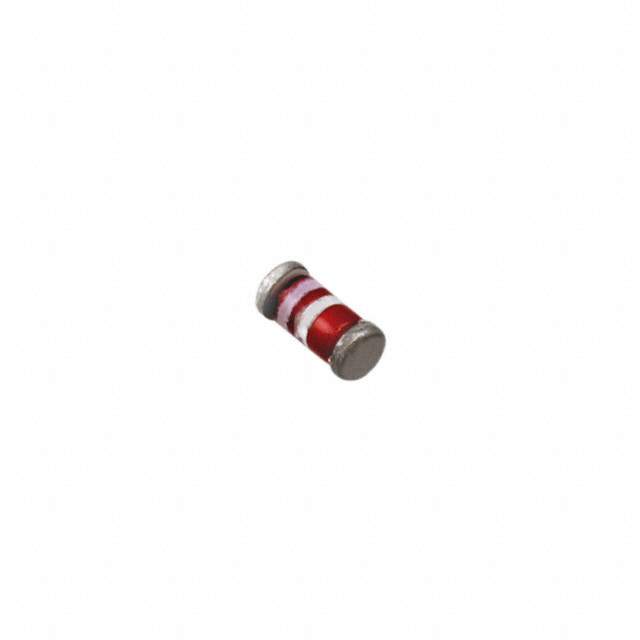

| Part Number | JAN1N5529DUR-1 | JAN1N5521DUR-1 | JAN1N5522DUR-1 | JAN1N5523DUR-1 | JAN1N5524DUR-1 | JAN1N5525DUR-1 | JAN1N5526DUR-1 | JAN1N5527DUR-1 | JAN1N5528DUR-1 | JAN1N5529BUR-1 | JAN1N5529CUR-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 9.1 V | 4.3 V | 4.7 V | 5.1 V | 5.6 V | 6.2 V | 6.8 V | 7.5 V | 8.2 V | 9.1 V | 9.1 V |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 45 Ohms | 18 Ohms | 22 Ohms | 26 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 35 Ohms | 40 Ohms | 45 Ohms | 45 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 8.2 V | 3 µA @ 1.5 V | 2 µA @ 2 V | 2 µA @ 2 V | 2 µA @ 3.5 V | 1 µA @ 5 V | 1 µA @ 6.2 V | 500 nA @ 6.8 V | 500 nA @ 7.5 V | 100 nA @ 8.2 V | 100 nA @ 8.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
