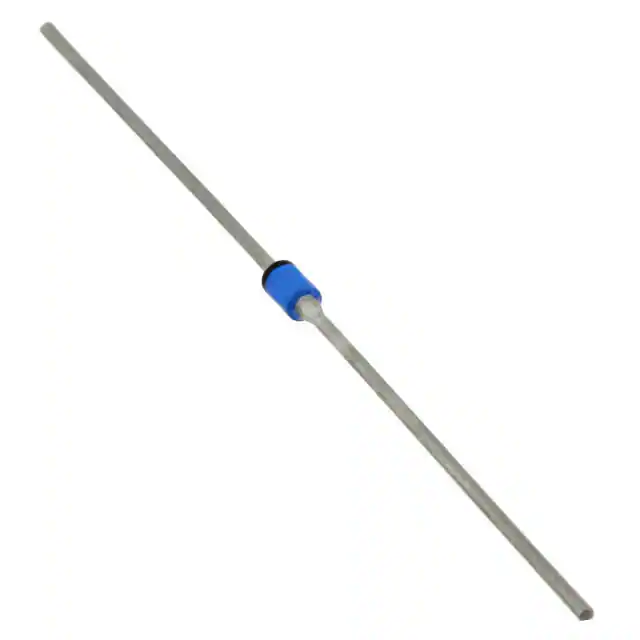

| Part Number | JAN1N5416US/TR | JAN1N5616US/TR | JAN1N5419US/TR | JAN1N5418US/TR | JAN1N5417US/TR | JAN1N5415US/TR |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active |
| Diode Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 400 V | 500 V | 400 V | 200 V | 50 V |
| Current - Average Rectified (Io) | 3A | 1A | 3A | 3A | 3A | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 9 A | 1.3 V @ 3 A | 1.5 V @ 9 A | 1.5 V @ 9 A | 1.5 V @ 9 A | 1.5 V @ 9 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns | 2 µs | 250 ns | 150 ns | 150 ns | 150 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 100 V | 500 nA @ 400 V | 1 µA @ 500 V | 1 µA @ 400 V | 1 µA @ 200 V | 1 µA @ 50 V |
| Capacitance @ Vr, F | - | - | - | - | - | - |
| Mounting Type | Through Hole | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Through Hole |
| Package / Case | B, Axial | SQ-MELF, A | SQ-MELF, B | SQ-MELF, B | SQ-MELF, B | B, Axial |
| Supplier Device Package | - | D-5A | D-5B | D-5B | B, SQ-MELF | - |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 200°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
