Please send RFQ , we will respond immediately.

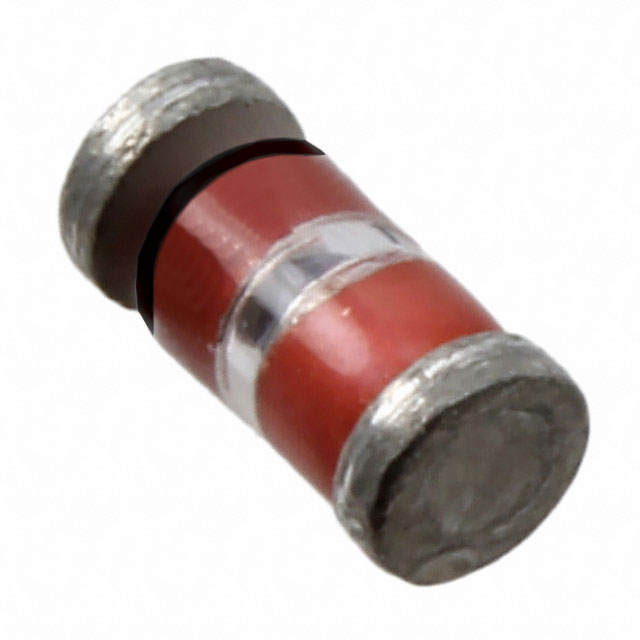

| Part Number | JAN1N5302UR-1 | JAN1N5307UR-1 | JAN1N5309UR-1 | JAN1N5312UR-1 | JAN1N5305UR-1 | JAN1N5303UR-1 | JAN1N5304UR-1 | JAN1N5306UR-1 | JAN1N5308UR-1 | JAN1N5300UR-1 | JAN1N5301UR-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Anode - Cathode (Vak)(Max) | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Regulator Current (Max) | 1.65mA | 2.64mA | 3.3mA | 4.29mA | 2.2mA | 1.76mA | 1.98mA | 2.42mA | 2.97mA | 1.43mA | 1.54mA |
| Voltage - Limiting (Max) | 1.6V | 2V | 2.25V | 2.6V | 1.85V | 1.65V | 1.75V | 1.95V | 2.15V | 1.5V | 1.55V |
| Power - Max | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW | 500mW |
| Applications | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) | DO-213AB (MELF, LL41) |
