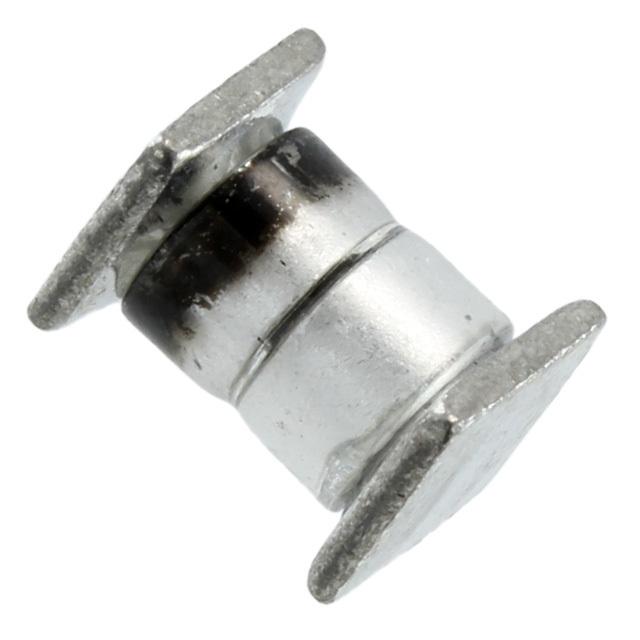

| Part Number | JAN1N4969CUS | JAN1N4969US | JAN1N4979CUS | JAN1N4969DUS | JAN1N4959CUS | JAN1N4960CUS | JAN1N4961CUS | JAN1N4962CUS | JAN1N4963CUS | JAN1N4964CUS | JAN1N4965CUS | JAN1N4966CUS | JAN1N4967CUS | JAN1N4968CUS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 30 V | 30 V | 75 V | 30 V | 11 V | 12 V | 13 V | 15 V | 16 V | 18 V | 20 V | 22 V | 24 V | 27 V |
| Tolerance | ±2% | ±5% | ±2% | ±1% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 8 Ohms | 8 Ohms | 55 Ohms | 8 Ohms | 2.5 Ohms | 2.5 Ohms | 3 Ohms | 3.5 Ohms | 3.5 Ohms | 4 Ohms | 4.5 Ohms | 5 Ohms | 5 Ohms | 6 Ohms |
| Current - Reverse Leakage @ Vr | 2 µA @ 22.8 V | 2 µA @ 22.8 V | 2 µA @ 56 V | 2 µA @ 22.8 V | 10 µA @ 8.4 V | 10 µA @ 9.1 V | 10 µA @ 9.9 V | 5 µA @ 11.4 V | 5 µA @ 12.2 V | 5 µA @ 13.7 V | 2 µA @ 15.2 V | 2 µA @ 16.7 V | 2 µA @ 18.2 V | 2 µA @ 20.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B |
