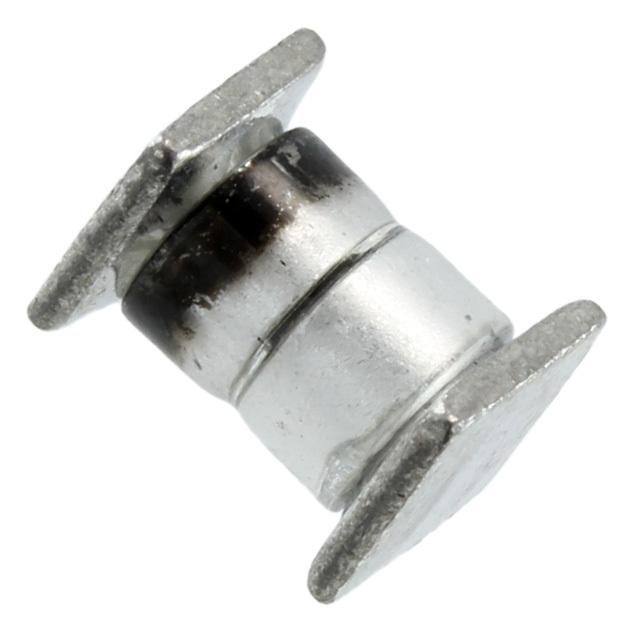

| Part Number | JAN1N4956DUS | JAN1N4956US | JAN1N4958DUS | JAN1N4959DUS | JAN1N4966DUS | JAN1N4957DUS | JAN1N4954DUS | JAN1N4955DUS | JAN1N4956CUS |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 8.2 V | 8.2 V | 10 V | 11 V | 22 V | 9.1 V | 6.8 V | 7.5 V | 8.2 V |
| Tolerance | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±2% |
| Power - Max | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W | 5 W |
| Impedance (Max) (Zzt) | 1.5 Ohms | 1.5 Ohms | 2 Ohms | 2.5 Ohms | 5 Ohms | 2 Ohms | 1 Ohms | 1.5 Ohms | 1.5 Ohms |
| Current - Reverse Leakage @ Vr | 50 µA @ 6.2 V | 50 µA @ 6.2 V | 25 µA @ 7.6 V | 10 µA @ 8.4 V | 2 µA @ 16.7 V | 25 µA @ 6.9 V | 150 µA @ 5.2 V | 100 µA @ 5.7 V | 50 µA @ 6.2 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A | 1.5 V @ 1 A |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF | E-MELF |
| Supplier Device Package | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B | D-5B |
