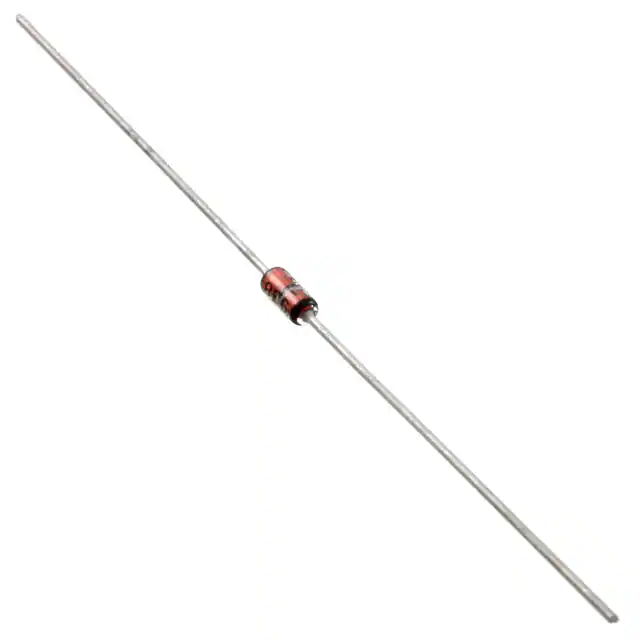

| Part Number | JAN1N4116D-1/TR | JAN1N4118D-1/TR | JAN1N4117D-1/TR | JAN1N4119D-1/TR | JAN1N4110D-1/TR | JAN1N4111D-1/TR | JAN1N4112D-1/TR | JAN1N4113D-1/TR | JAN1N4114D-1/TR | JAN1N4115D-1/TR | JAN1N4116-1/TR | JAN1N4116C-1/TR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 24 V | 27 V | 25 V | 28 V | 16 V | 17 V | 18 V | 19 V | 20 V | 22 V | 24 V | 24 V |
| Tolerance | ±1% | ±1% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±2% |
| Power - Max | - | - | - | - | - | - | - | - | - | - | - | - |
| Impedance (Max) (Zzt) | 150 Ohms | 150 Ohms | 150 Ohms | 200 Ohms | 100 Ohms | 100 Ohms | 100 Ohms | 150 Ohms | 150 Ohms | 150 Ohms | 150 Ohms | 150 Ohms |
| Current - Reverse Leakage @ Vr | 10 nA @ 18.3 V | 10 nA @ 20.5 V | 10 nA @ 19 V | 10 nA @ 21.3 V | 50 nA @ 12.2 V | 50 nA @ 13 V | 50 nA @ 13.7 V | 50 nA @ 14.5 V | 10 nA @ 15.2 V | 10 nA @ 16.8 V | 10 nA @ 18.3 V | 10 nA @ 18.3 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) | DO-35 (DO-204AH) |
