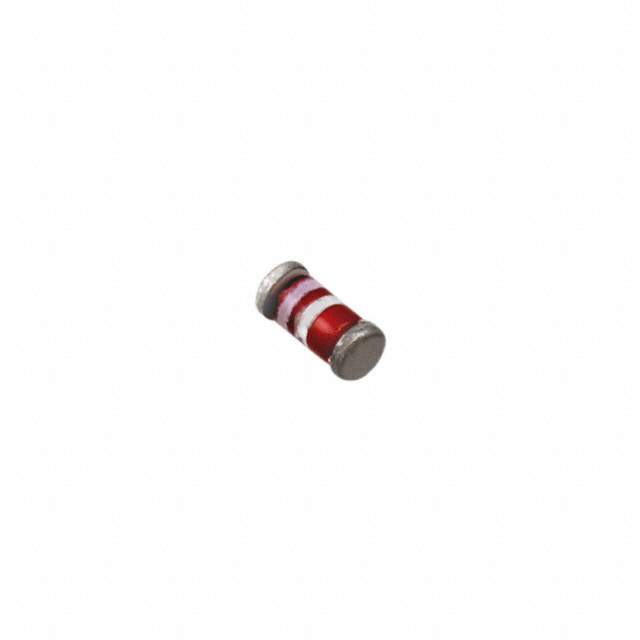

| Part Number | JAN1N4109UR-1 | JAN1N4101UR-1 | JAN1N4102UR-1 | JAN1N4103UR-1 | JAN1N4104UR-1 | JAN1N4105UR-1 | JAN1N4106UR-1 | JAN1N4107UR-1 | JAN1N4108UR-1 | JAN1N4109CUR-1 | JAN1N4109DUR-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 8.2 V | 8.7 V | 9.1 V | 10 V | 11 V | 12 V | 13 V | 14 V | 15 V | 15 V |
| Tolerance | ±5% | ±1% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±2% | ±1% |
| Power - Max | - | - | - | - | - | - | - | - | - | - | - |
| Impedance (Max) (Zzt) | 100 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 200 Ohms | 100 Ohms | 100 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 11.4 V | 500 nA @ 6.3 V | 500 nA @ 6.7 V | 500 nA @ 7 V | 500 nA @ 7.6 V | 50 nA @ 8.5 V | 50 nA @ 9.2 V | 50 nA @ 9.9 V | 50 nA @ 10.7 V | 50 nA @ 11.4 V | 50 nA @ 11.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
