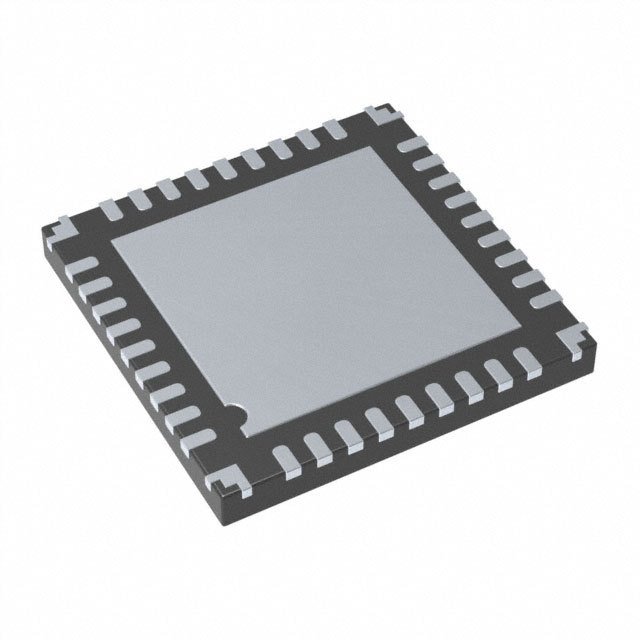

| Part Number | DSPIC33EV128GM103T-I/M5 | DSPIC33EV128GM003T-I/M5 | DSPIC33EV128GM103-I/M5 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Core Processor | dsPIC | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit | 16-Bit |
| Speed | 70 MIPs | 70 MIPs | 70 MIPs |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 25 | 25 | 25 |
| Program Memory Size | 128KB (43K x 24) | 128KB (43K x 24) | 128KB (43K x 24) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | A/D 13x10b/12b | A/D 13x10b/12b | A/D 13x10b/12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad |
| Supplier Device Package | 36-UQFN (5x5) | 36-UQFN (5x5) | 36-UQFN (5x5) |
