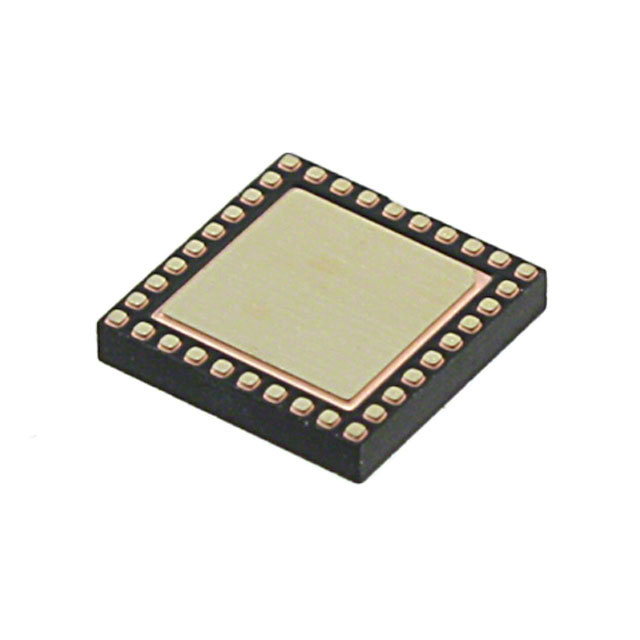

| Part Number | DSPIC33EP32MC503T-E/TL | DSPIC33EP32MC503T-I/TL | DSPIC33EP32MC504T-E/TL | DSPIC33EP32MC203T-E/TL | DSPIC33EP32MC503-E/TL |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Core Processor | dsPIC | dsPIC | dsPIC | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 60 MIPs | 70 MIPs | 60 MIPs | 60 MIPs | 60 MIPs |
| Connectivity | CANbus, I²C, IrDA, LINbus, QEI, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, QEI, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, QEI, SPI, UART/USART | I²C, IrDA, LINbus, QEI, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, QEI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 25 | 25 | 35 | 25 | 25 |
| Program Memory Size | 32KB (10.7K x 24) | 32KB (10.7K x 24) | 32KB (10.7K x 24) | 32KB (10.7K x 24) | 32KB (10.7K x 24) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 2K x 16 | 2K x 16 | 2K x 16 | 2K x 16 | 2K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 8x10b/12b | A/D 8x10b/12b | A/D 9x10b/12b | A/D 8x10b/12b | A/D 8x10b/12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 36-VFTLA Exposed Pad | 36-VFTLA Exposed Pad | 44-VFTLA Exposed Pad | 36-VFTLA Exposed Pad | 36-VFTLA Exposed Pad |
| Supplier Device Package | 36-VTLA (5x5) | 36-VTLA (5x5) | 44-VTLA (6x6) | 36-VTLA (5x5) | 36-VTLA (5x5) |
