| Part Number | DSPIC33CK64MP103T-I/M5 | DSPIC33CK64MP203T-I/M5 | DSPIC33CK64MP503T-I/M5 | DSPIC33CK64MC103T-I/M5 | DSPIC33CK64MP103-I/M5 |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Core Processor | dsPIC | dsPIC | dsPIC | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, QEI, Smart Card, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT | Brown-out Detect/Reset, DMA, POR, PWM, QEI, Smart Card, WDT |
| Number of I/O | 27 | 29 | 29 | 27 | 27 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 3x12b | A/D 16x12b; D/A 3x12b | A/D 16x12b; D/A 3x12b | A/D 15x12b; D/A 1x12b | A/D 16x12b; D/A 3x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

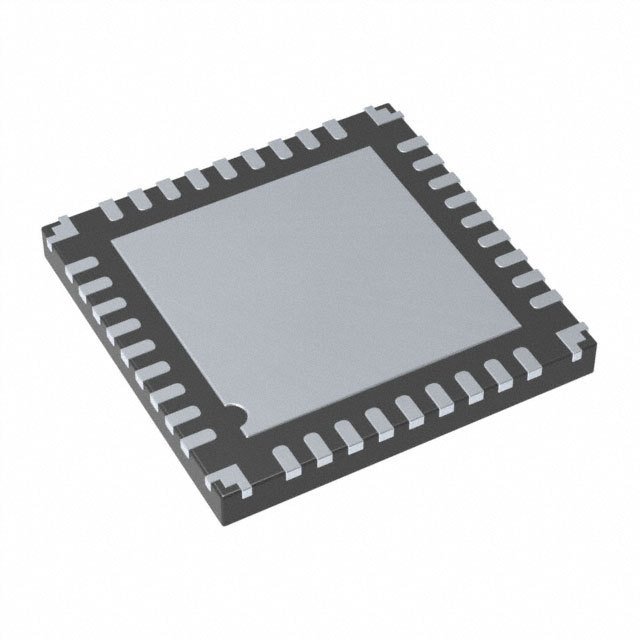

| Package / Case | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad | 36-UFQFN Exposed Pad |
| Supplier Device Package | 36-UQFN (5x5) | 36-UQFN (5x5) | 36-UQFN (5x5) | 36-UQFN (5x5) | 36-UQFN (5x5) |
