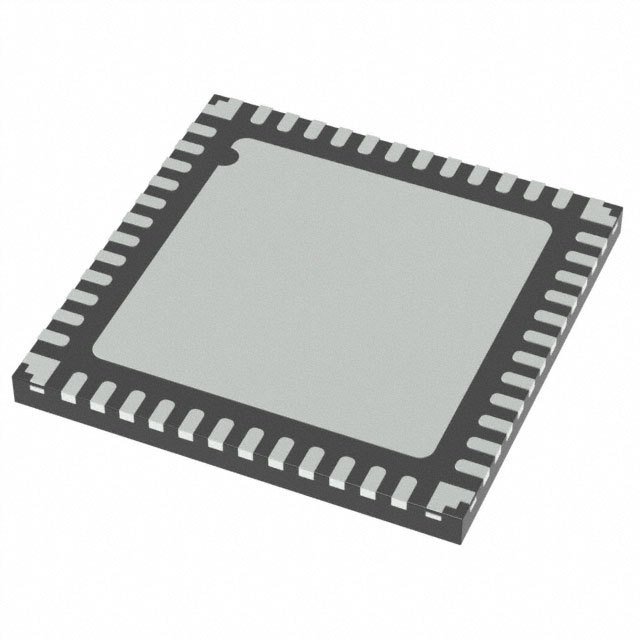

| Part Number | DSPIC33CH512MP205-E/M4 | DSPIC33CH512MP205-I/M4 | DSPIC33CH512MP505-E/M4 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Core Processor | dsPIC | dsPIC | dsPIC |
| Core Size | 16-Bit Dual-Core | 16-Bit Dual-Core | 16-Bit Dual-Core |
| Speed | 180MHz, 200MHz | 180MHz, 200MHz | 180MHz, 200MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | CANbus, I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 39 | 39 | 39 |
| Program Memory Size | 584kB (584k x 8) | 584kB (584k x 8) | 584kB (584k x 8) |
| Program Memory Type | FLASH, PRAM | FLASH, PRAM | FLASH, PRAM |
| EEPROM Size | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Data Converters | A/D 31x12b; D/A 4x12b | A/D 31x12b; D/A 4x12b | A/D 31x12b; D/A 4x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad | 48-UFQFN Exposed Pad |
| Supplier Device Package | 48-UQFN (6x6) | 48-UQFN (6x6) | 48-UQFN (6x6) |
