Please send RFQ , we will respond immediately.

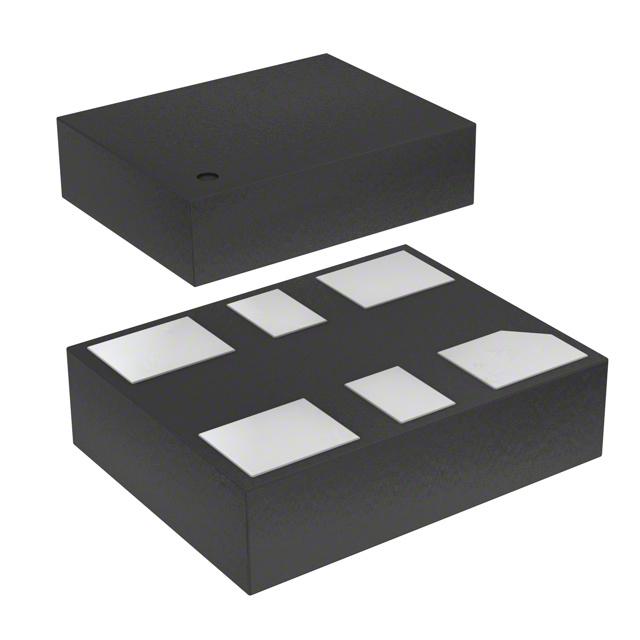

| Part Number | DSC8122AI2 | DSC8124AI2 | DSC8122DI2 | DSC8123AI2 | DSC8122CI2 | DSC8122BI2 | DSC8102AI2 | DSC8121AI2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Programmable Type | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) |
| Available Frequency Range | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 170 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Standby | Enable/Disable |
| Output | LVPECL | HCSL | LVPECL | LVDS | LVPECL | LVPECL | LVPECL | CMOS |
| Voltage - Supply | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V |
| Frequency Stability | - | ±25ppm | - | - | - | - | - | - |
| Frequency Stability (Total) | ±25ppm | - | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 58mA | 42mA | 58mA | 32mA | 58mA | 58mA | 58mA | 35mA |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead Exposed Pad | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
