Please send RFQ , we will respond immediately.

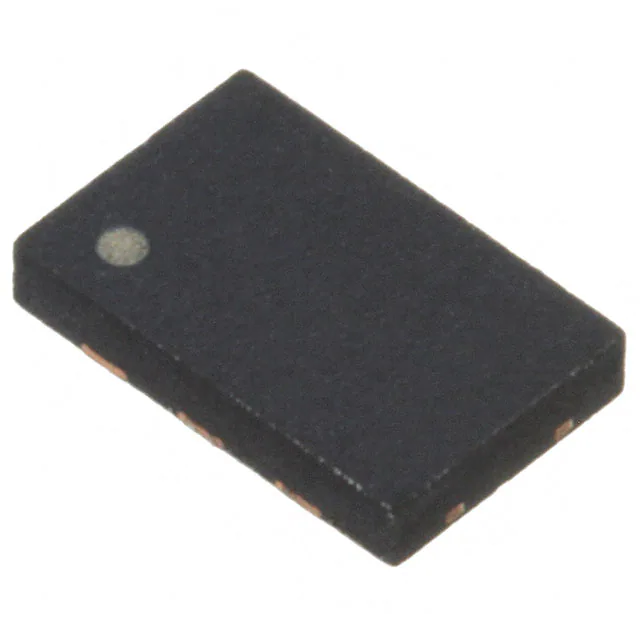

| Part Number | DSC8101BI2-PROGRAMMABLE | DSC8101CI2-PROGRAMMABLE | DSC8121BI2-PROGRAMMABLE | DSC8101BI5-PROGRAMMABLE | DSC8104BI2-PROGRAMMABLE | DSC8102BI2-PROGRAMMABLE | DSC8103BI2-PROGRAMMABLE | DSC8101BM2-PROGRAMMABLE | DSC8001BI2-PROGRAMMABLE | DSC8101AI2-PROGRAMMABLE |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Available Frequency Range | 10 MHz ~ 170 MHz | 10 MHz ~ 170 MHz | 10 MHz ~ 170 MHz | 10 MHz ~ 170 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 460 MHz | 10 MHz ~ 170 MHz | 1 MHz ~ 150 MHz | 10 MHz ~ 170 MHz |
| Function | Standby | Standby | Enable/Disable | Standby | Standby | Standby | Standby | Standby | Standby | Standby |
| Output | CMOS | CMOS | CMOS | CMOS | HCSL | LVPECL | LVDS | CMOS | CMOS | CMOS |
| Voltage - Supply | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 1.8V ~ 3.3V | 2.25V ~ 3.6V |
| Frequency Stability | - | - | - | - | - | - | - | - | - | - |
| Frequency Stability (Total) | ±25ppm | ±25ppm | ±25ppm | ±10ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -55°C ~ 125°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 35mA | 35mA | 35mA | 35mA | 42mA | 58mA | 32mA | 35mA | 12.2mA | 35mA |
| Ratings | - | - | - | - | AEC-Q100 | AEC-Q100 | AEC-Q100 | - | AEC-Q100 | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 4-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
