Please send RFQ , we will respond immediately.

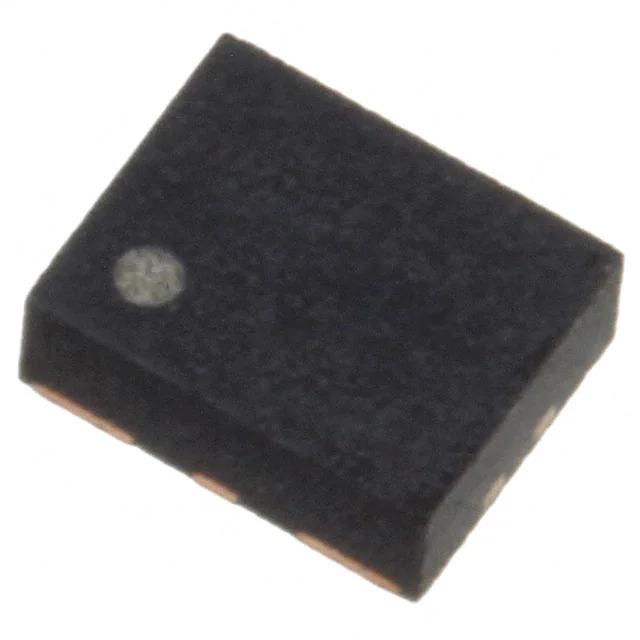

| Part Number | DSC8001DI1-PROGRAMMABLE | DSC8001DI2-PROGRAMMABLE | DSC8001DI5-PROGRAMMABLE | DSC8002DI1-PROGRAMMABLE | DSC8001AI1-PROGRAMMABLE | DSC8001CI1-PROGRAMMABLE |
|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Available Frequency Range | 1 MHz ~ 150 MHz | 1 MHz ~ 150 MHz | 1 MHz ~ 150 MHz | 1 MHz ~ 150 MHz | 1 MHz ~ 150 MHz | 1 MHz ~ 150 MHz |
| Function | Standby | Standby | Standby | Standby | Standby | Standby |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | - | - | - | - | - | - |
| Frequency Stability (Total) | ±50ppm | ±25ppm | ±10ppm | ±50ppm | ±50ppm | ±50ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - |
| Current - Supply (Max) | 12.2mA | 12.2mA | 12.2mA | 10mA | 12.2mA | 12.2mA |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 | - | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
