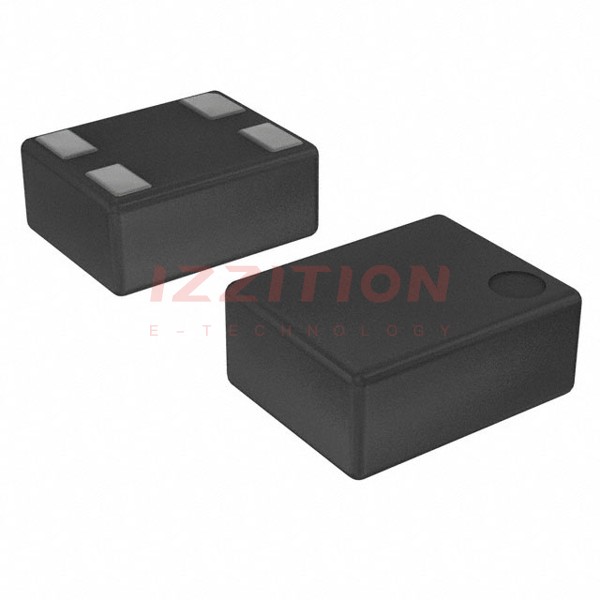

| Part Number | DSC6331MI1BA-027.0000T | DSC6331CI1BA-027.0000T | DSC6331HI1BA-027.0000T |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 27 MHz | 27 MHz | 27 MHz |
| Function | - | - | - |
| Output | LVCMOS | LVCMOS | LVCMOS |
| Voltage - Supply | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | - | - | - |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | ±0.50%, Center Spread | ±0.50%, Center Spread | ±0.50%, Center Spread |
| Current - Supply (Max) | 3mA (Typ) | 3mA (Typ) | 3mA (Typ) |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
