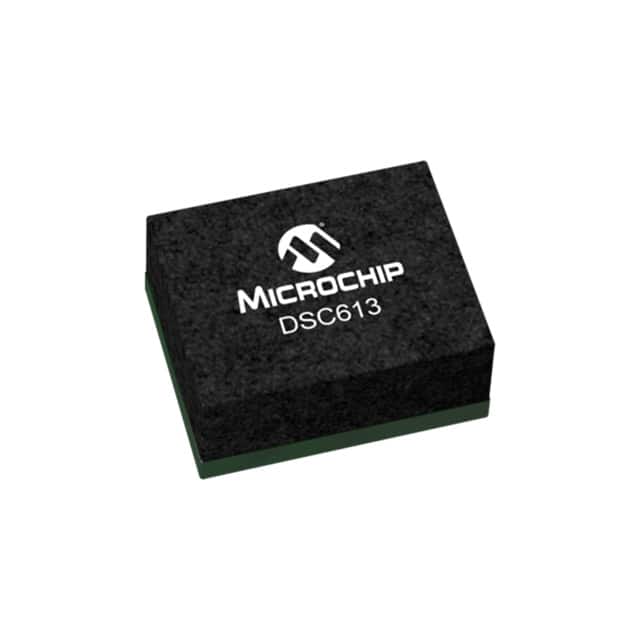

| Part Number | DSC613PL3A-0106 | DSC613PL3A-0106B | DSC613PL3A-0106T |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency - Output 1 | 19.2MHz | 19.2MHz | 19.2MHz |
| Frequency - Output 2 | 24MHz | 24MHz | 24MHz |
| Frequency - Output 3 | 32.768kHz | 32.768kHz | 32.768kHz |
| Frequency - Output 4 | - | - | - |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVCMOS | LVCMOS | LVCMOS |
| Voltage - Supply | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Current - Supply (Max) | 6.5mA | 6.5mA | 6.5mA |
| Ratings | - | - | - |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Package / Case | 6-VFLGA | 6-VFLGA | 6-VFLGA |
