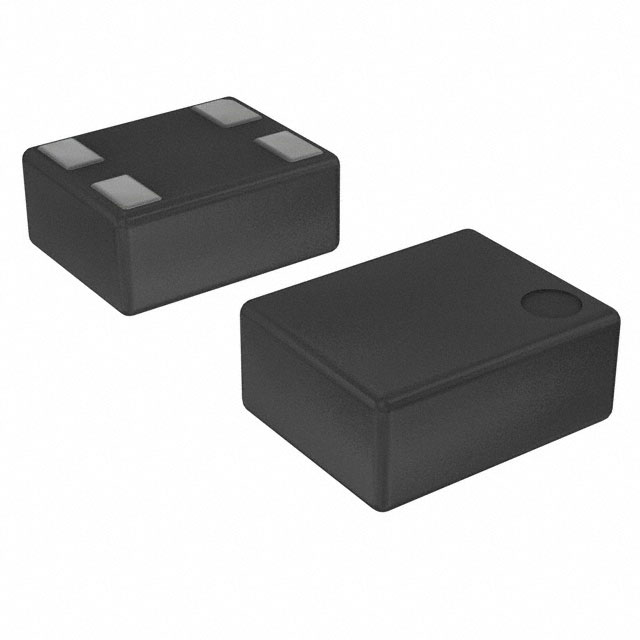

| Part Number | DSC6101MI2A-019.0000T | DSC6101MI2A-016.0000T | DSC6101MI2A-019.0000 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 19 MHz | 16 MHz | 19 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 3mA (Typ) | 3mA (Typ) | 3mA (Typ) |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-VFLGA | 4-VFLGA | 4-VFLGA |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
