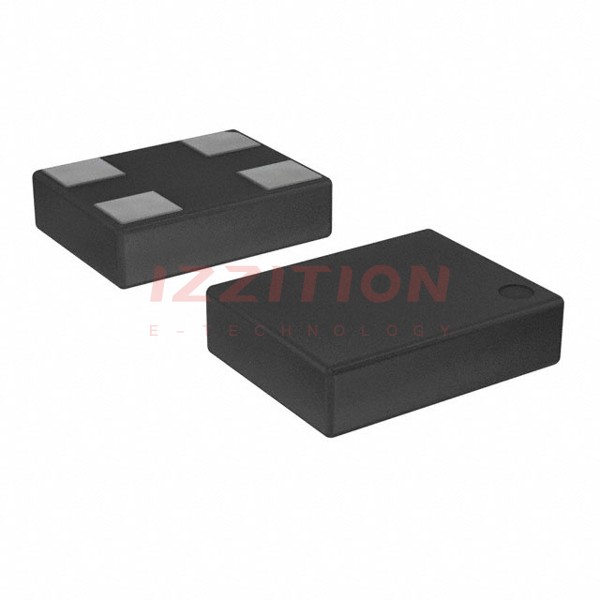

| Part Number | DSC6101CI1A-066.6670T | DSC6101CI1A-066.6670 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) |
| Frequency | 66.667 MHz | 66.667 MHz |
| Function | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - |
| Current - Supply (Max) | 3mA (Typ) | 3mA (Typ) |
| Ratings | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4-VDFN | 4-VDFN |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) |
