Please send RFQ , we will respond immediately.

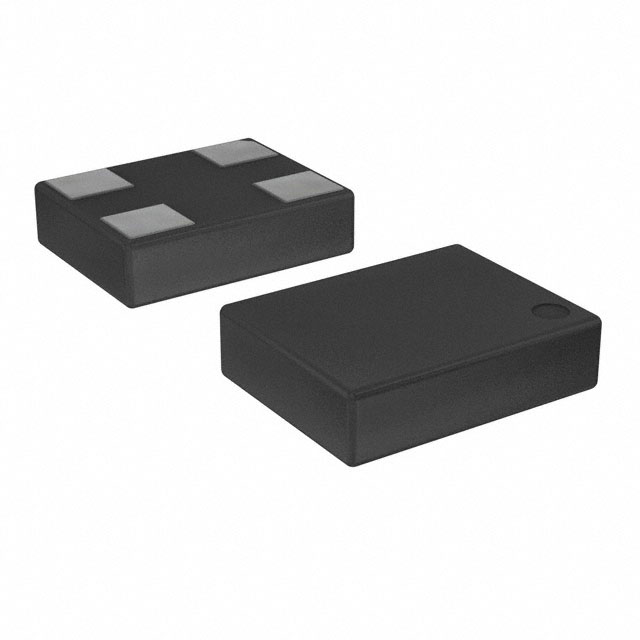

| Part Number | DSC6101CE1A-100.0000T | DSC6101CE2A-100.0000T | DSC6101CE1A-100.0000 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 100 MHz | 100 MHz | 100 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | ±50ppm | ±25ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 3mA (Typ) | 3mA (Typ) | 3mA (Typ) |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
