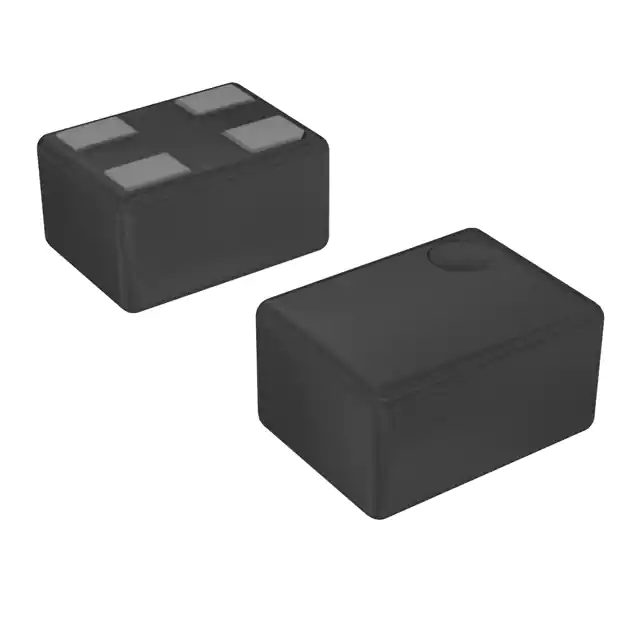

| Part Number | DSC6003HE2A-000.0000T | DSC6003JE2A-000.0000T | DSC6003HI2A-000.0000T | DSC6003ME2A-000.0000T | DSC6013HE2A-000.0000T | DSC6001HE2A-000.0000T | DSC6003CE2A-000.0000T | DSC6003HE1A-000.0000T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Programmable Type | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) |
| Available Frequency Range | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz | 1 MHz ~ 80 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Standby | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V | 1.71V ~ 3.63V |
| Frequency Stability | - | - | - | - | - | - | - | - |
| Frequency Stability (Total) | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±50ppm |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -40°C ~ 85°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) | 1.3mA (Typ) |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.90mm) | 0.035" (0.89mm) |
