| Part Number | DSC2011FI2-F0064T | DSC2011FI2-F0064 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Base Resonator | MEMS | MEMS |
| Type | MEMS (Silicon) | MEMS (Silicon) |
| Frequency - Output 1 | 11.2896MHz, 22.5792MHz | 11.2896MHz, 22.5792MHz |
| Frequency - Output 2 | 11.2896MHz, 12.285741MHz, 22.5792MHz, 24.571482MHz | 11.2896MHz, 12.285741MHz, 22.5792MHz, 24.571482MHz |
| Frequency - Output 3 | - | - |
| Frequency - Output 4 | - | - |
| Function | Enable/Disable | Enable/Disable |
| Output | LVCMOS | LVCMOS |
| Voltage - Supply | 2.25V ~ 3.6V | 2.25V ~ 3.6V |
| Frequency Stability | ±50ppm | ±50ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Current - Supply (Max) | 32mA (Typ) | 32mA (Typ) |
| Ratings | - | - |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height | 0.037" (0.95mm) | 0.037" (0.95mm) |

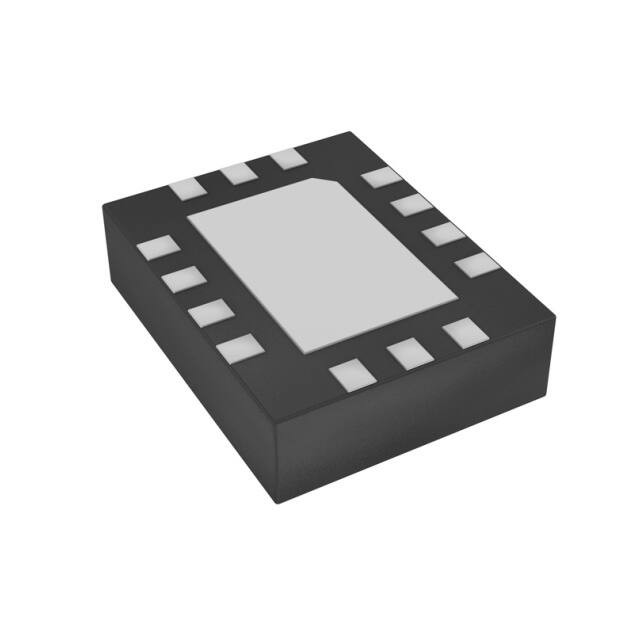

| Package / Case | 14-VFQFN Exposed Pad | 14-VFQFN Exposed Pad |
