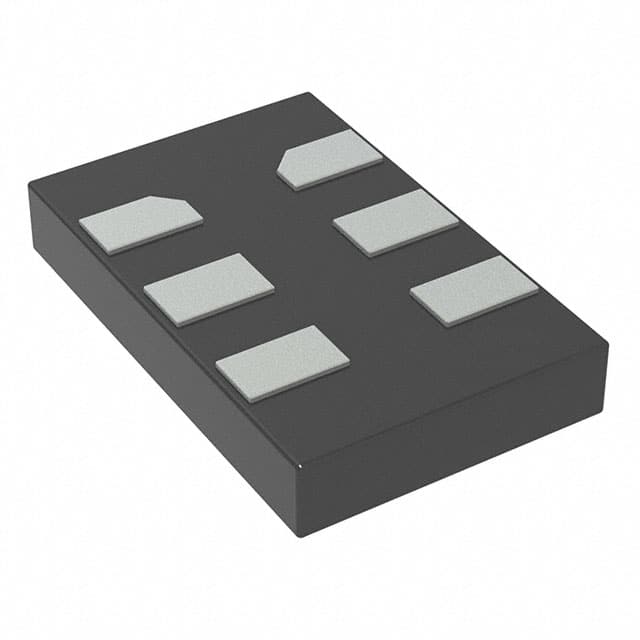

| Part Number | DSC1201CA3-PROGT | DSC1201DA3-PROGT | DSC1201NA3-PROGT | DSC1201BA3-PROGT | DSC1201CA3-PROG |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Programmable Type | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) |
| Available Frequency Range | 2.5 MHz ~ 170 MHz | 2.5 MHz ~ 170 MHz | 2.5 MHz ~ 170 MHz | 2.5 MHz ~ 170 MHz | 2.5 MHz ~ 170 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V |
| Frequency Stability | - | - | - | - | - |
| Frequency Stability (Total) | ±20ppm | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 27mA (Typ) | 27mA (Typ) | 27mA (Typ) | 27mA (Typ) | 27mA (Typ) |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN | 6-VDFN | 6-VDFN | 6-VDFN | 6-VDFN |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
