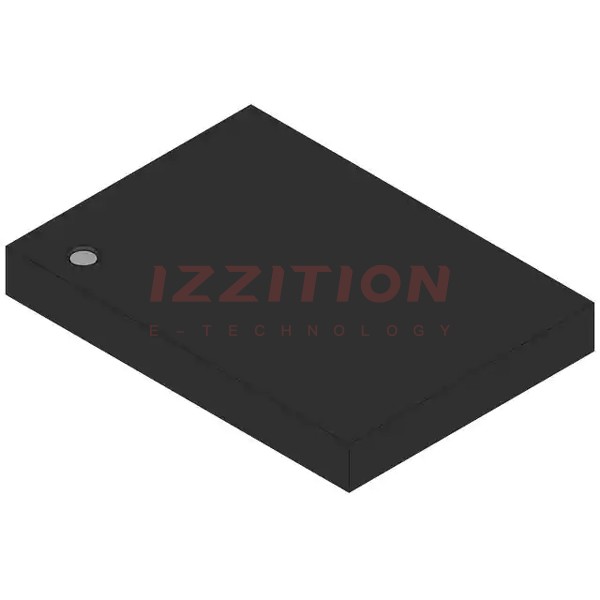

| Part Number | DSC1122BI2-150.0000T | DSC1122CI2-150.0000T | DSC1122AI2-150.0000T | DSC1122BE2-150.0000T | DSC1122BI2-100.0000T |
|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active |
| Base Resonator | - | MEMS | MEMS | MEMS | MEMS |
| Type | - | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | - | 150 MHz | 150 MHz | 150 MHz | 100 MHz |
| Function | - | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | - | LVPECL | LVPECL | LVPECL | LVPECL |
| Voltage - Supply | - | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V |
| Frequency Stability | - | ±25ppm | ±25ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | - | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | - | 58mA | 58mA | 58mA | 58mA |
| Ratings | - | - | - | - | - |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 6-SMD, No Lead | 6-SMD, No Lead Exposed Pad | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | - | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
