Please send RFQ , we will respond immediately.

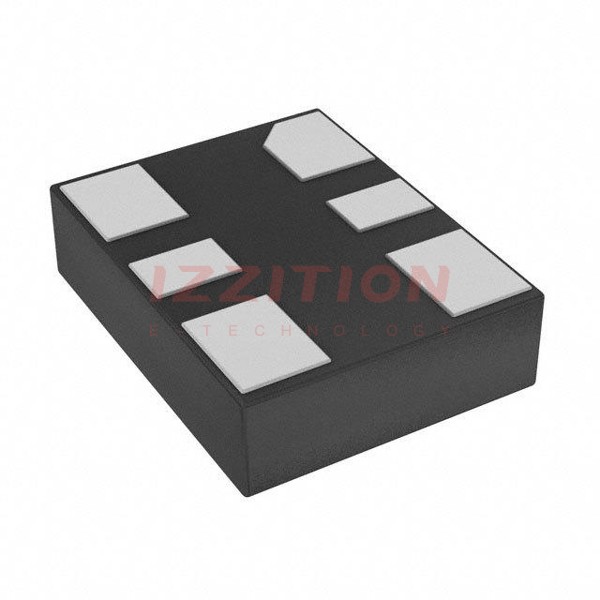

| Part Number | DSC1101CI5-024.0000 | DSC1101CI5-025.0000 | DSC1101CI5-026.0000 | DSC1101CI5-027.0000 | DSC1101CI5-024.0000T | DSC1101CE5-024.0000 | DSC1101CI1-024.0000 | DSC1101CI2-024.0000 | DSC1101CI5-020.0000 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 24 MHz | 25 MHz | 26 MHz | 27 MHz | 24 MHz | 24 MHz | 24 MHz | 24 MHz | 20 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V |
| Frequency Stability | - | ±10ppm | ±10ppm | ±10ppm | - | - | ±50ppm | ±25ppm | ±10ppm |
| Absolute Pull Range (APR) | ±10ppm | - | - | - | ±10ppm | ±10ppm | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 35mA | 35mA | 35mA | 95µA | 35mA | 35mA | 35mA | 35mA | 35mA |
| Ratings | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-VDFN | 6-VDFN | 6-VDFN | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
