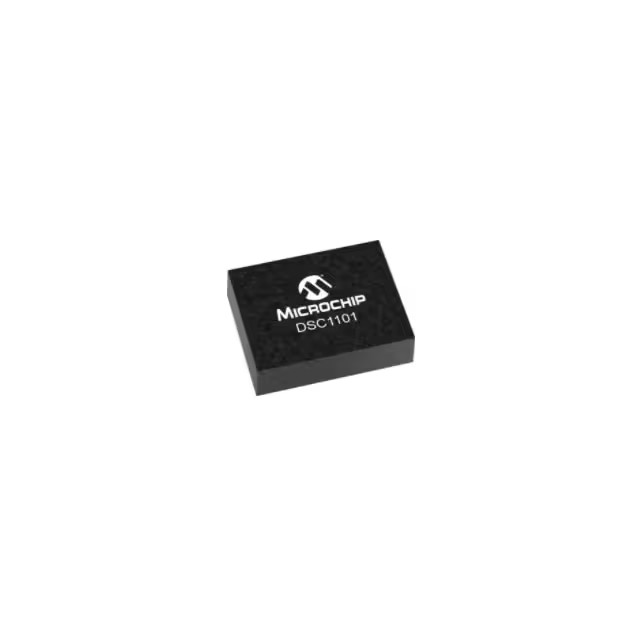

| Part Number | DSC1101AI1-025.0000 | DSC1101AI2-025.0000 | DSC1101AI1-025.0000T |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 25 MHz | 25 MHz | 25 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS |
| Voltage - Supply | 2.25V ~ 3.6V | 2.25V ~ 3.6V | 2.25V ~ 3.6V |
| Frequency Stability | ±50ppm | ±25ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 35mA | 35mA | 35mA |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad | 6-SMD, No Lead Exposed Pad | 6-VDFN Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
