Please send RFQ , we will respond immediately.

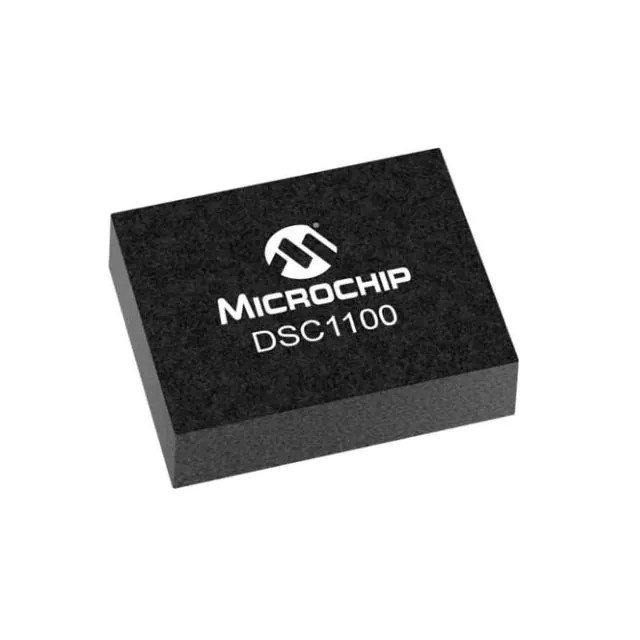

| Part Number | DSC1100DL3-PROGT | DSC1100NL3-PROGT | DSC1101DL3-PROGT | DSC1100DL5-PROGT | DSC1200DL3-PROGT | DSC1000DL3-PROGT | DSC1100AL3-PROGT | DSC1100BL3-PROGT | DSC1100CL3-PROGT | DSC1100DL3-PROG |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | - | - | MEMS | - | MEMS | - | - | - | - | MEMS |
| Type | - | - | XO (Standard) | - | XO (Standard) | - | - | - | - | XO (Standard) |
| Programmable Type | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) | Blank (User Must Program) |
| Available Frequency Range | - | - | 2.3 MHz ~ 170 MHz | - | 2.5 MHz ~ 450 MHz | - | - | - | - | - |
| Function | - | - | Standby (Power Down) | - | Standby (Power Down) | - | - | - | - | - |
| Output | - | - | CMOS | - | - | - | - | - | - | - |
| Voltage - Supply | - | - | 2.25V ~ 3.6V | - | 2.25V ~ 3.63V | - | - | - | - | - |
| Frequency Stability | - | - | - | - | - | - | - | - | - | ±20ppm |
| Frequency Stability (Total) | - | - | ±20ppm | - | ±20ppm | - | - | - | - | - |
| Operating Temperature | - | - | -40°C ~ 105°C | - | -40°C ~ 105°C | - | - | - | - | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | - | - | 35mA | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-VDFN | 6-SMD, No Lead | 6-VDFN | 6-VDFN | 6-VDFN | 4-VDFN | 6-VDFN Exposed Pad | 6-VDFN | 6-VDFN | 6-VDFN |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
