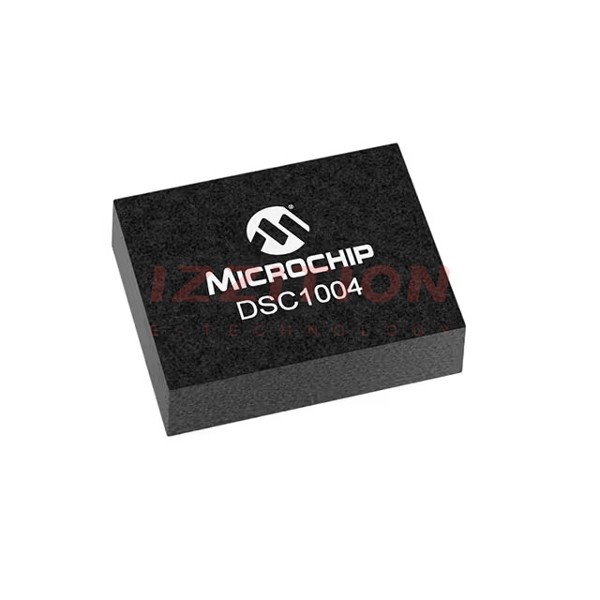

| Part Number | DSC1004CL2-030.0000 | DSC1004CL2-030.0000T | DSC1004CL2-020.0000 |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 30 MHz | 30 MHz | 20 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.8V ~ 3.3V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 8mA | 8mA | 6.5mA |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-VDFN | 4-VDFN | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
