Please send RFQ , we will respond immediately.

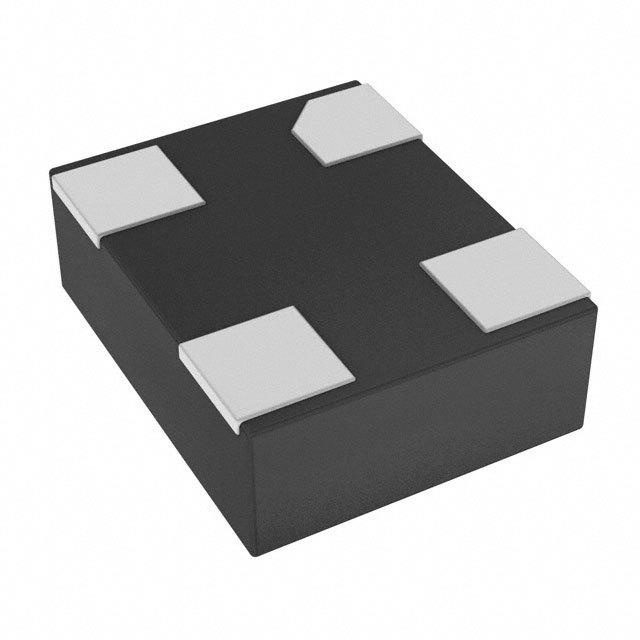

| Part Number | DSC1001CE2-020.0000T | DSC1001CE2-024.0000T | DSC1001CE2-025.0000T | DSC1001CE2-026.0000T | DSC1001CE2-027.0000T | DSC1001CE2-040.0000T | DSC1001CE2-050.0000T | DSC1001CE2-060.0000T | DSC1001CE1-020.0000T | DSC1001CE2-010.0000T | DSC1001CE2-020.0000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 20 MHz | 24 MHz | 25 MHz | 26 MHz | 27 MHz | 40 MHz | 50 MHz | 60 MHz | 20 MHz | 10 MHz | 20 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±50ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 6.3mA | 6.3mA | 6.3mA | 6.3mA | 7.2mA | 7.2mA | 7.2mA | 8mA | 6.3mA | 6.3mA | 6.3mA |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-VDFN | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
