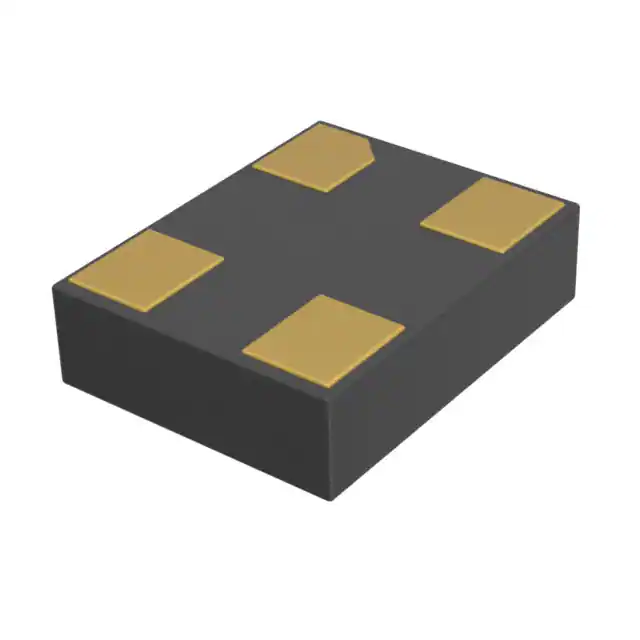

| Part Number | DSA1001DL2-024.0000VAO | DSA1001DL2-025.0000VAO | DSA1001DL2-027.0000VAO | DSA1001DL2-054.0000VAO | DSA1001DL3-024.0000VAO | DSA1001DL2-026.0000VAO | DSA1001DI2-024.0000VAO | DSA1001DL1-024.0000VAO | DSA1001DL2-020.0000VAO | DSA1001DL2-024.0000TVAO |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 24 MHz | 25 MHz | 27 MHz | 54 MHz | 24 MHz | 26 MHz | 24 MHz | 24 MHz | 20 MHz | 24 MHz |
| Function | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) | Standby (Power Down) |
| Output | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Voltage - Supply | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm | ±25ppm | ±20ppm | ±25ppm | ±25ppm | ±50ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - | - | - | - |
| Current - Supply (Max) | 8mA | 8mA | 10.5mA | 10.5mA | 8mA | 8mA | 8mA | 8mA | 8mA | 8mA |
| Ratings | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 | AEC-Q100 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN | 4-VDFN |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
