Microchip Technology-CDLL4454 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	50 V
Current - Average Rectified (Io):	200mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 10 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	100 nA @ 50 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	DO-213AA
Supplier Device Package:	DO-213AA
Operating Temperature - Junction:	-55°C ~ 175°C

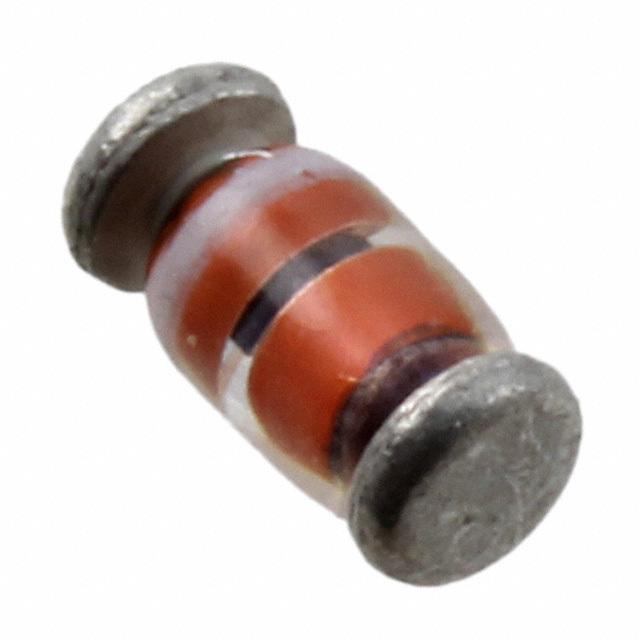

Microchip Technology CDLL4454
