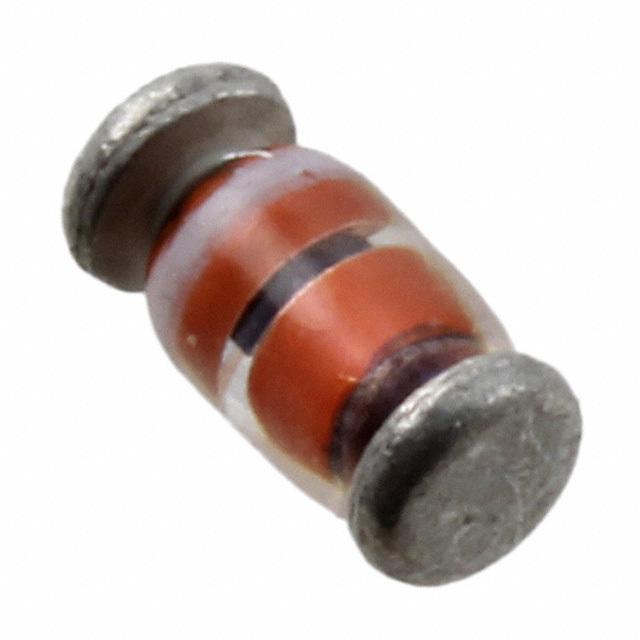

| Part Number | CDLL4150 | CDLL4153 |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V | 75 V |
| Current - Average Rectified (Io) | 300mA | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 880 mV @ 20 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 50 V | 50 nA @ 50 V |
| Capacitance @ Vr, F | 2.5pF @ 0V, 1MHz | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | DO-213AA | DO-213AA |
| Supplier Device Package | DO-213AA | DO-213AA |
| Operating Temperature - Junction | -65°C ~ 175°C | -65°C ~ 175°C |
