Microchip Technology-CDLL3600 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	50 V
Current - Average Rectified (Io):	300mA
Voltage - Forward (Vf) (Max) @ If:	680 mV @ 10 mA
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	4 ns
Current - Reverse Leakage @ Vr:	100 nA @ 50 V
Capacitance @ Vr, F:	2.5pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AA
Supplier Device Package:	DO-213AA
Operating Temperature - Junction:	-65°C ~ 175°C

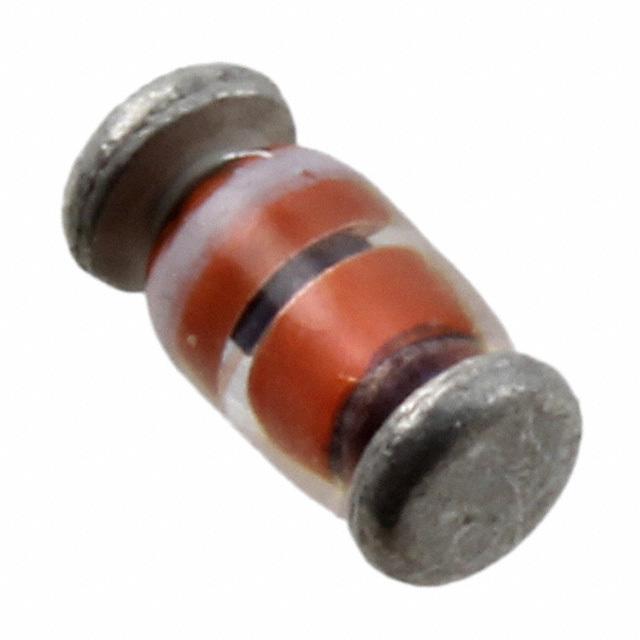

Microchip Technology CDLL3600
