Microchip Technology-CDLL2810 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	75mA
Voltage - Forward (Vf) (Max) @ If:	1 V @ 35 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 nA @ 15 V
Capacitance @ Vr, F:	2pF @ 0V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	DO-213AA
Supplier Device Package:	DO-213AA
Operating Temperature - Junction:	-65°C ~ 150°C

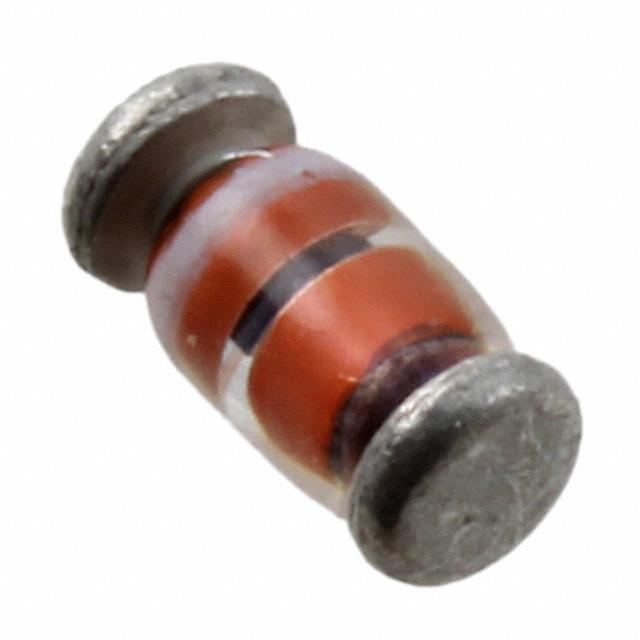

Microchip Technology CDLL2810
