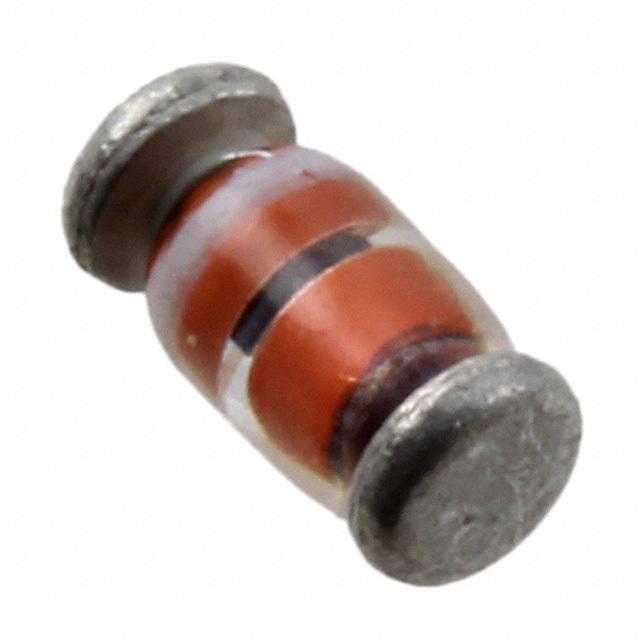

| Part Number | CDLL0.5A40 | CDLL0.2A40 | CDLL0.5A20 | CDLL0.5A30 |
|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 20 V | 30 V |
| Current - Average Rectified (Io) | 500mA | 200mA | 500mA | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 650 mV @ 500 mA | 500 mV @ 200 mA | 650 mV @ 500 mA | 650 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - |
| Current - Reverse Leakage @ Vr | 10 µA @ 40 V | 5 µA @ 40 V | 10 µA @ 20 V | 10 µA @ 30 V |
| Capacitance @ Vr, F | 50pF @ 0V, 1MHz | 50pF @ 0V, 1MHz | 50pF @ 0V, 1MHz | 50pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
| Operating Temperature - Junction | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
