Microchip Technology-CD984B - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	CD984B	CD986B	CD985B	CD964B	CD974B	CD980B	CD981B	CD982B	CD983B
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	91 V	110 V	100 V	13 V	36 V	62 V	68 V	75 V	82 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	400 Ohms	750 Ohms	500 Ohms	13 Ohms	70 Ohms	185 Ohms	230 Ohms	270 Ohms	330 Ohms
Current - Reverse Leakage @ Vr	500 nA @ 69 V	500 nA @ 84 V	500 nA @ 76 V	500 nA @ 9.9 V	500 nA @ 27 V	500 nA @ 47 V	500 nA @ 52 V	500 nA @ 56 V	500 nA @ 62 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Die	Die	Die	Die	Die	Die	Die	Die	Die
Supplier Device Package	Die	Die	Die	Die	Die	Die	Die	Die	Die

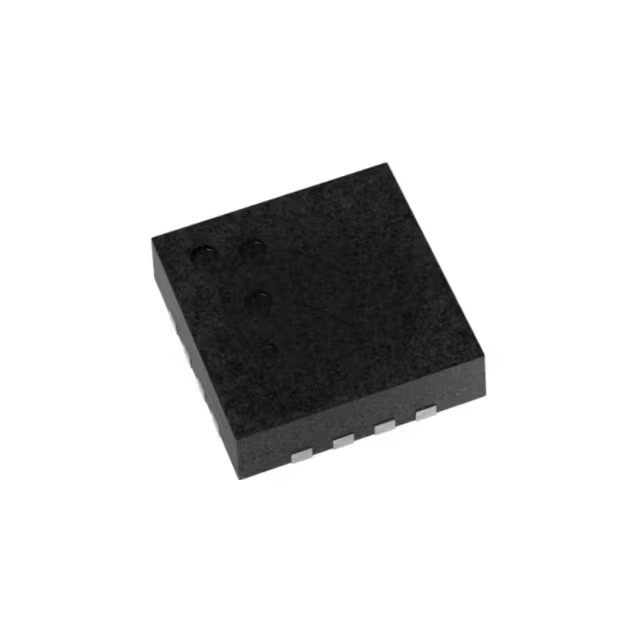

Microchip Technology CD984B
