Microchip Technology-CD751A - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	CD751A	CD757A	CD752A	CD756A	CD759A	CD758A	CD754A	CD753A	CD755A	CD750A
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	5.1 V	9.1 V	5.6 V	8.2 V	12 V	10 V	6.8 V	6.2 V	7.5 V	4.7 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	17 Ohms	10 Ohms	11 Ohms	8 Ohms	30 Ohms	17 Ohms	5 Ohms	7 Ohms	6 Ohms	19 Ohms
Current - Reverse Leakage @ Vr	5 µA @ 2 V	1 µA @ 7 V	5 µA @ 2.5 V	1 µA @ 6 V	1 µA @ 9 V	1 µA @ 8 V	2 µA @ 4 V	5 µA @ 3.5 V	2 µA @ 5 V	5 µA @ 1.5 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C	-65°C ~ 175°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Die	Die	Die	Die	Die	Die	Die	Die	Die	Die
Supplier Device Package	Die	Die	Die	Die	Die	Die	Die	Die	Die	Die

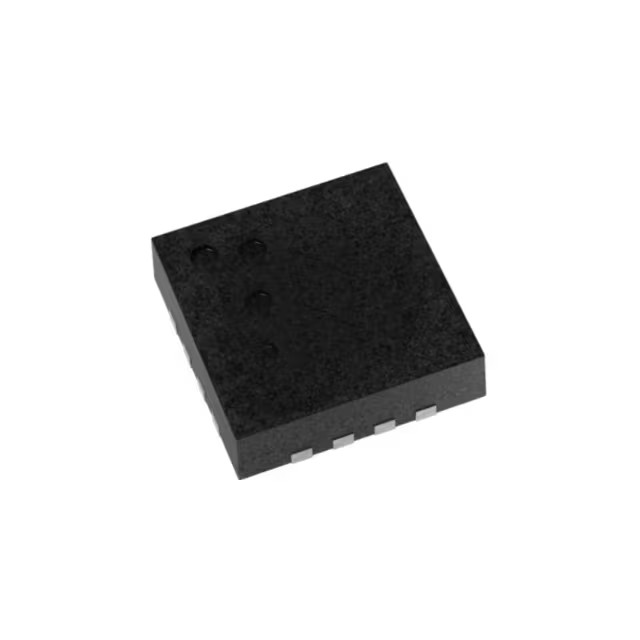

Microchip Technology CD751A
