Please send RFQ , we will respond immediately.

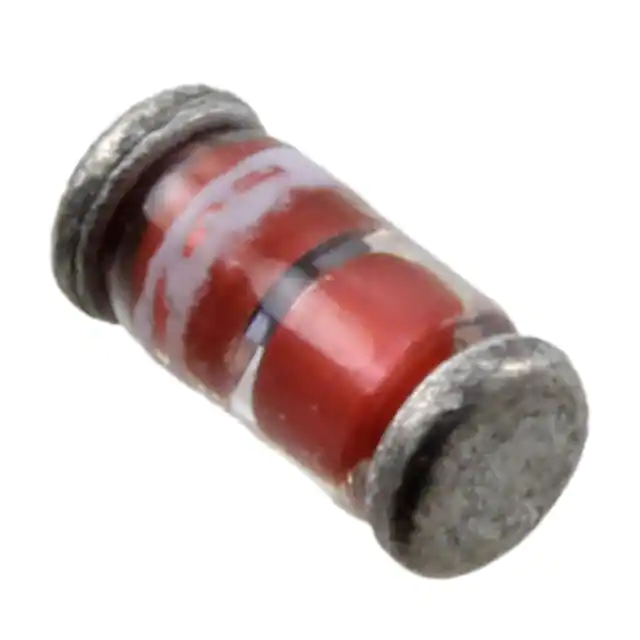

| Part Number | BZV55C10 | BZV55C15 | BZV55C11 | BZV55C16 | BZV55C20 | BZV55C30 | BZV55C18 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 10 V | 15 V | 11 V | 16 V | 20 V | 30 V | 18 V |
| Tolerance | ±6% | ±6% | ±5% | ±6% | ±6% | ±7% | ±6.39% |
| Power - Max | - | - | - | - | - | - | - |
| Impedance (Max) (Zzt) | - | - | - | - | - | - | 45 Ohms |
| Current - Reverse Leakage @ Vr | 200 nA @ 7 V | 50 nA @ 10.5 V | 100 nA @ 8 V | 50 nA @ 11.2 V | 50 nA @ 14 V | 50 nA @ 21 V | 50 nA @ 12.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA | 1.1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA (Glass) | DO-213AA |
| Supplier Device Package | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA | DO-213AA |
