Please send RFQ , we will respond immediately.

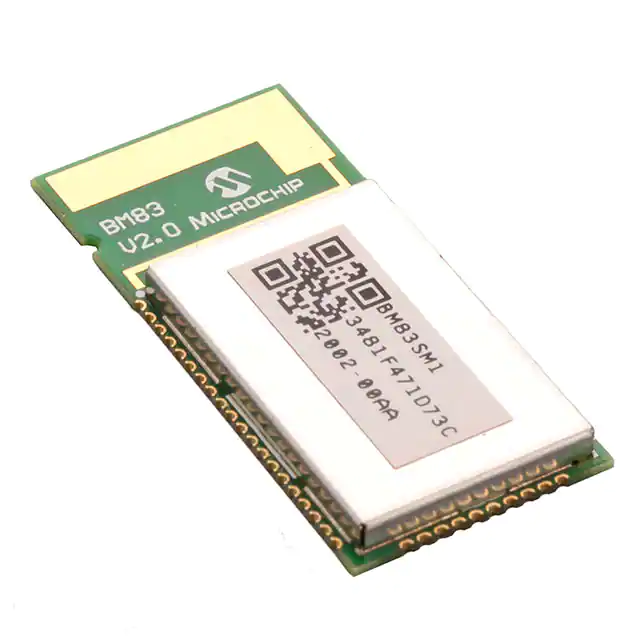

| Part Number | BM83SM1-00TB | BM83SM1-00AB | BM83SM1-00TA |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | - | - |
| Modulation | GFSK | - | - |
| Frequency | 2.4GHz | 2.402GHz ~ 2.48GHz | 2.402GHz ~ 2.48GHz |
| Data Rate | 3Mbps | 2Mbps | 2Mbps |
| Power - Output | 11dBm | 11dBm | 11dBm |
| Sensitivity | -90dBm | -90dBm | -90dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, JTAG, PWM, SPI, UART, USB | ADC, GPIO, I²S, JTAG, PWM, UART, USB | ADC, GPIO, I²S, JTAG, PWM, UART, USB |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace |
| Utilized IC / Part | IS2083BM | IS2083BM | IS2083BM |
| Memory Size | - | - | - |
| Voltage - Supply | 3.2V ~ 4.2V | 3.2V ~ 4.2V | 3.2V ~ 4.2V |
| Current - Receiving | 38.5mA ~ 49mA | 38.5mA ~ 49mA | 38.5mA ~ 49mA |
| Current - Transmitting | 22mA ~ 59mA | 22mA ~ 59mA | 22mA ~ 59mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Package / Case | 50-SMD Module | 50-SMD Module | 50-SMD Module |
