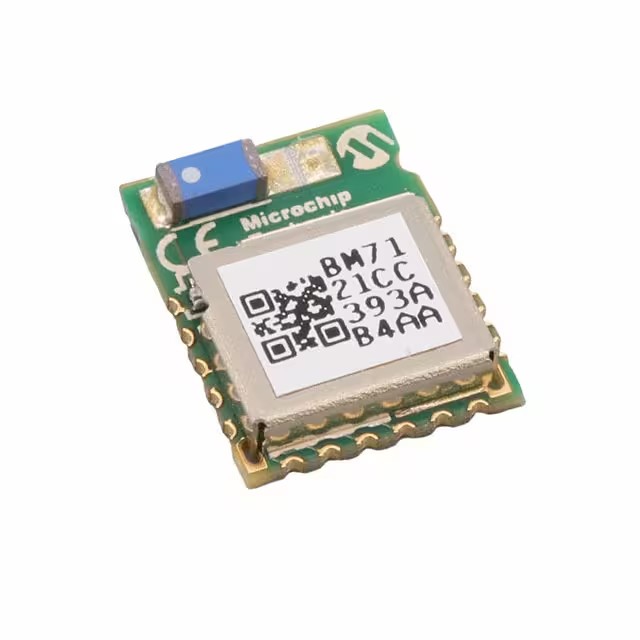

| Part Number | BM71BLES1FC2-0B04AA | BM70BLES1FC2-0B04AA | BM71BLES1FC2-0B02AA |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | - | - | - |
| Power - Output | 0dBm | 0dBm | 2dBm |
| Sensitivity | -90dBm | -90dBm | -90dBm |
| Serial Interfaces | UART | I²C, SPI, UART | UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | - | - | - |
| Memory Size | - | - | - |
| Voltage - Supply | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V |
| Current - Receiving | 13mA | 13mA | 10mA ~ 13mA |
| Current - Transmitting | 13mA | 13mA | 13mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 16-SMD Module | 33-SMD Module | Module |
