Please send RFQ , we will respond immediately.

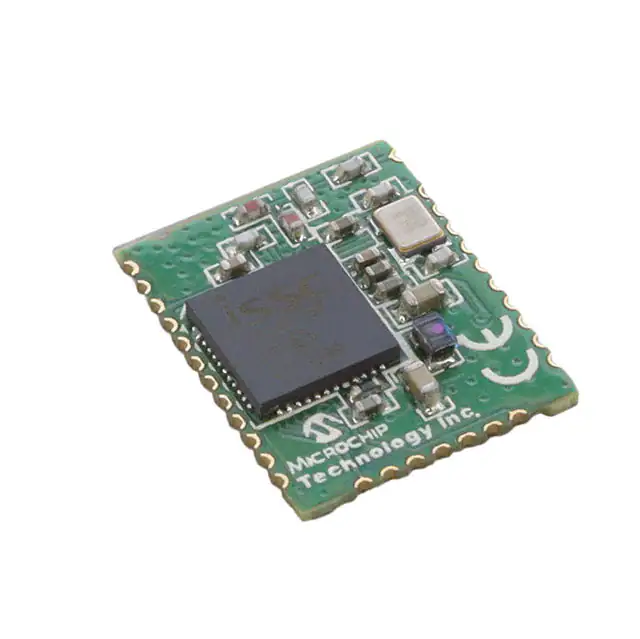

| Part Number | BM70BLE01FC2-0B05BA | BM70BLES1FC2-0B05BA |
|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology |
| Product Status | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | - | - |
| Frequency | 2.402GHz ~ 2.48GHz | 2.402GHz ~ 2.48GHz |
| Data Rate | - | - |
| Power - Output | 0dBm | 0dBm |
| Sensitivity | -90dBm | -90dBm |
| Serial Interfaces | ADC, GPIO, I²C, PWM, SPI, UART | ADC, GPIO, I²C, PWM, SPI, UART |
| Antenna Type | Antenna Not Included | Integrated, Chip |
| Utilized IC / Part | - | - |
| Memory Size | 256kB Flash, 32kB ROM, 24kB SRAM | 256kB Flash, 32kB ROM, 24kB SRAM |
| Voltage - Supply | 1.9V ~ 3.6V | 1.9V ~ 3.6V |
| Current - Receiving | 10mA | 10mA |
| Current - Transmitting | 10mA | 10mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Package / Case | 30-SMD Module | 33-SMD Module |
