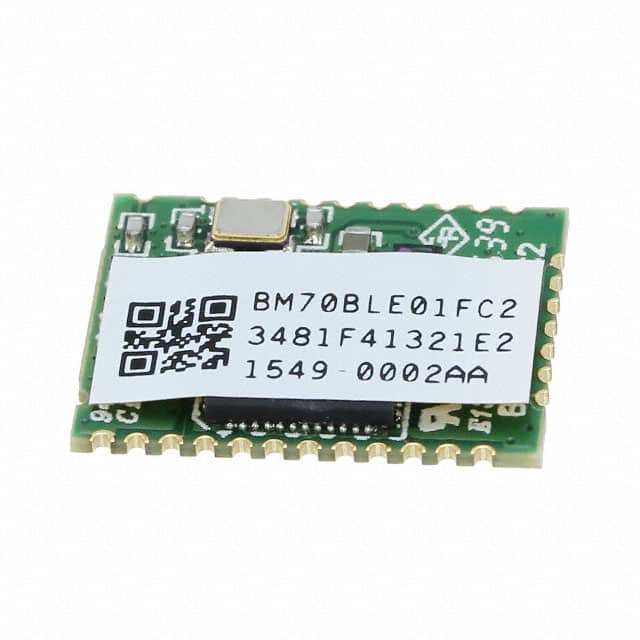

| Part Number | BM70BLE01FC2-0002AA | BM70BLES1FC2-0002AA | BM71BLE01FC2-0002AA |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz ~ 2.48GHz |
| Data Rate | - | - | - |
| Power - Output | 2dBm | 2dBm | 0dBm |
| Sensitivity | -90dBm | -90dBm | -90dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Antenna Not Included | Integrated, Chip | Antenna Not Included |
| Utilized IC / Part | - | - | - |
| Memory Size | 256kB Flash, 32kB ROM, 24kB SRAM | 256kB Flash, 32kB ROM, 24kB SRAM | - |
| Voltage - Supply | 1.9V ~ 3.6V | 1.9V ~ 3.6V | 1.9V ~ 3.6V |
| Current - Receiving | 13mA | 13mA | 13mA |
| Current - Transmitting | 13mA | 13mA | 13mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Package / Case | Module | Module | Module |
