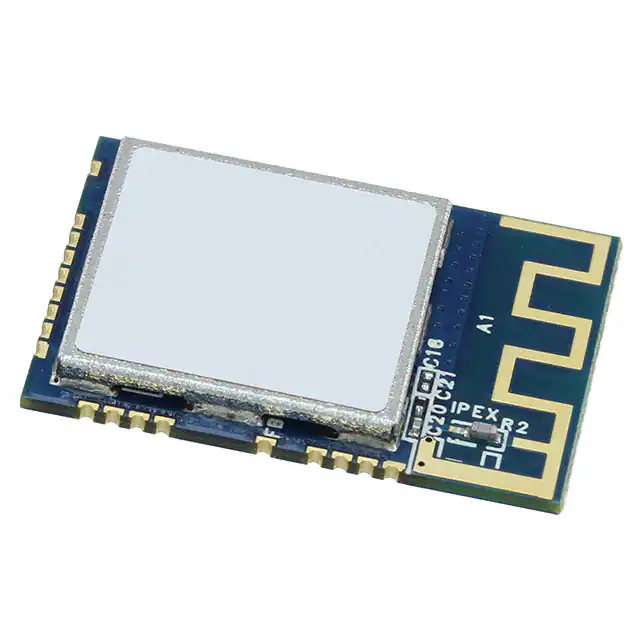

| Part Number | ATWINC1510-MR210PB | ATWINC1510-MR210UB | ATWINC1500-MR210PB |
|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Discontinued at Digi-Key | Active | Active |
| RF Family/Standard | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 72.2Mbps | 72.2Mbps | 72.2Mbps |
| Power - Output | 18.5dBm | 19.5dBm | 18.5dBm |
| Sensitivity | -95dBm | -98dBm | -95dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Integrated, Trace | Antenna Not Included, U.FL | Integrated, Trace |
| Utilized IC / Part | - | - | - |
| Memory Size | 8MB Flash, 128kB RAM | 8MB Flash, 128kB RAM | 4MB Flash, 128kB RAM |
| Voltage - Supply | 2.7V ~ 3.6V | 3V ~ 4.2V | 2.7V ~ 3.6V |
| Current - Receiving | 61mA | 52.5mA ~ 70.1mA | 61mA |
| Current - Transmitting | 265mA | 132mA ~ 294mA | 265mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | Module |
