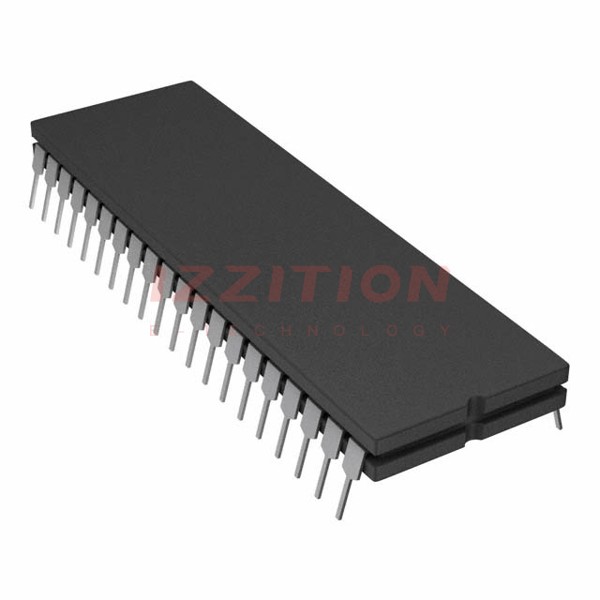

| Part Number | ATV2500BQ-25DC | ATV2500BQ-25PC | ATV2500BQ-25DI | ATV2500BQ-25JC | ATV2500BQ-25KC | ATV2500BQL-25DC | ATV2500BQ-20DC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable Type | UV Erasable | OTP | UV Erasable | OTP | UV Erasable | UV Erasable | UV Erasable |
| Delay Time tpd(1) Max | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 25 ns | 20 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.5V ~ 5.5V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | - | - | - | - | - | - | - |
| Number of Macrocells | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Number of Gates | - | - | - | - | - | - | - |
| Number of I/O | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | -40°C ~ 85°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Surface Mount | Through Hole | Through Hole |
| Package / Case | 40-CDIP (0.600", 15.24mm) Window | 40-DIP (0.600", 15.24mm) | 40-CDIP (0.600", 15.24mm) Window | 44-LCC (J-Lead) | 44-CLCC Window (J-Lead) | 40-CDIP (0.600", 15.24mm) Window | 40-CDIP (0.600", 15.24mm) Window |
| Supplier Device Package | 40-CERDIP | 40-PDIP | 40-CERDIP | 44-PLCC (16.6x16.6) | 44-JLCC (16.63x16.63) | 40-CERDIP | 40-CERDIP |
