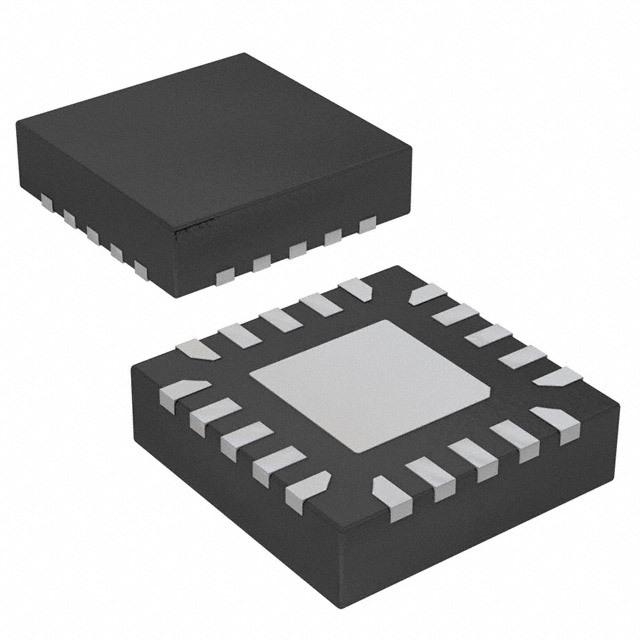

| Part Number | ATTINY816-MF | ATTINY826-MF | ATTINY816-MFR | ATTINY816-MN | ATTINY817-MF | ATTINY816-SF | ATTINY806-MF |
|---|---|---|---|---|---|---|---|
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | AVR | AVR | AVR | AVR | AVR | AVR | AVR |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 16MHz | 20MHz | 16MHz | 20MHz | 16MHz | 16MHz | 16MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART | I²C, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, IrDA, LINbus, SPI, UART/USART | I²C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 18 | 18 | 18 | 18 | 22 | 18 | 18 |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 | 128 x 8 |
| RAM Size | 512 x 8 | 1K x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 1x8b | A/D 15x12b | A/D 12x10b; D/A 1x8b | A/D 12x10b; D/A 1x8b | A/D 12x10b; D/A 1x8b | A/D 12x10b; D/A 1x8b | A/D 12x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 20-SOIC (0.295", 7.50mm Width) | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3x3) | 20-VQFN (3x3) | 20-VQFN (3x3) | 20-VQFN (3x3) | 24-QFN (4x4) | 20-SOIC | 20-VQFN (3x3) |
